Overview

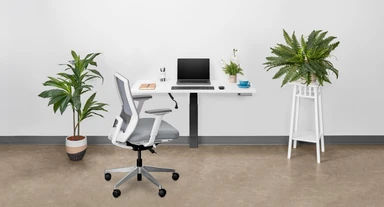

The UPLIFT Wall Mounted Standing Desk is an excellent option when space is at a premium. It offers 26.1" of vertical adjustment in a compact, wall-mounted package. The elimination of desk legs resting on the floor opens up the area below for floorspace savings.
Tap a button to adjust the desk's height to anywhere within its 22.6" to 48.7" height range.
The UPLIFT Wall Mounted Standing Desk has a 175 lb lifting capacity, inclusive of the desktop weight.
Popular for use in condos, dorms, medical exam rooms, clinics, patient caregiver facilities, office hallways, and university or business common areas when a small, wall-attached desktop or table is needed.
Details
Videos
Warranty + Returns
Instructions
Specifications
| Warranty | 15 year warranty on all UPLIFT Desk products Warranty page |

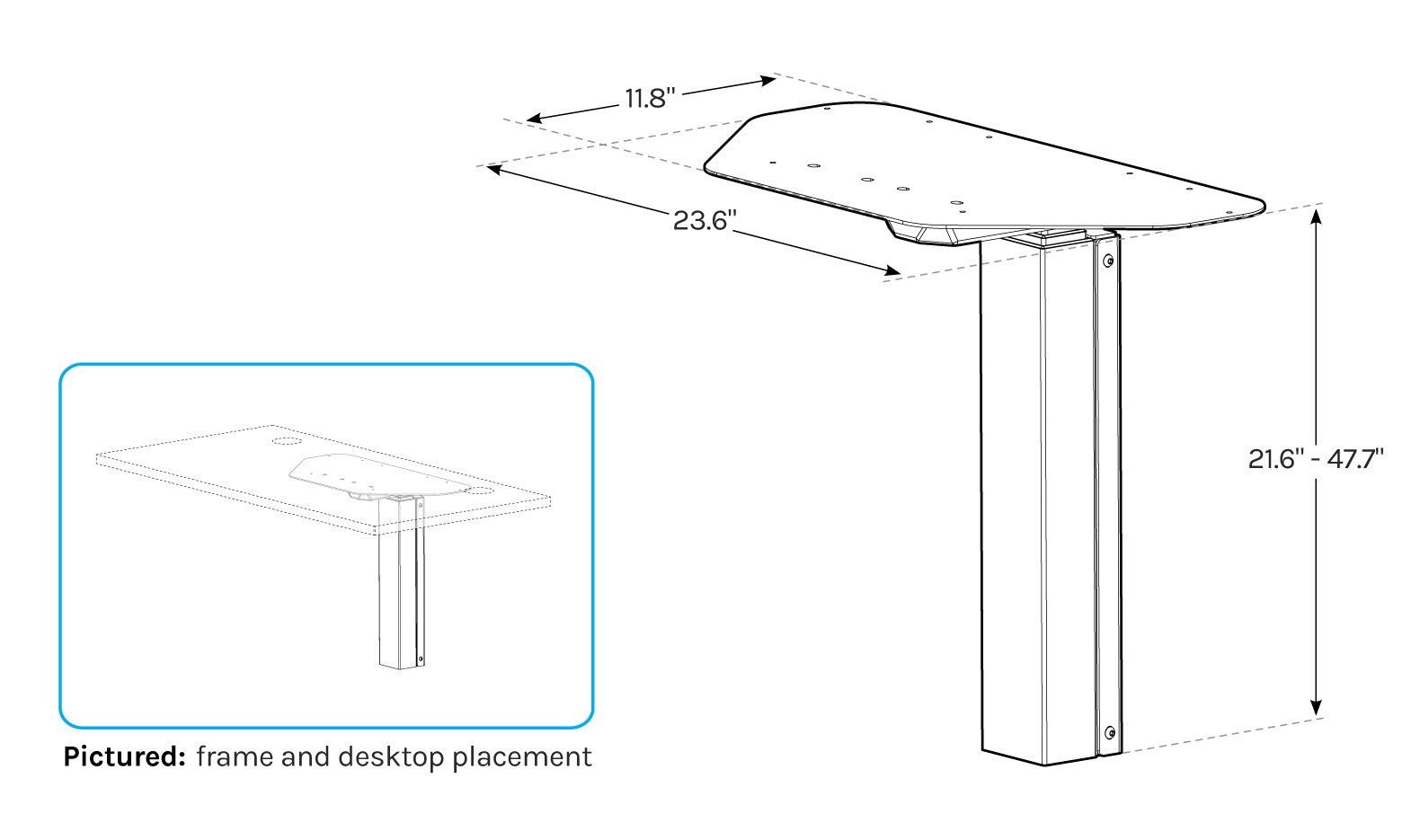

| Product dimensions & weight | 23.6" W x 11.8" D x 22.6" H to 48.7" H (with 1" thick desktop) 31 lb without desktop, desktop weights vary |
| Travel speed | 1.6" per second (depending on load) with soft start/stop actuator motors |
| Travel range | 26.1" |
| Height range | 21.6" to 47.7" without desktop (22.6" to 48.7" with 1" desktop), which meets BIFMA G1-2013 height requirement when mounted as suggested |
| Noise level | Less than 50 decibels during motion, silent when not in motion |
| Lifting capacity | 175 lb (inclusive of desktop weights) |
| Electrical input | 100-120VAC, 50/60Hz (400W max) |
| Electrical certifications | UL (U.S.)/CSA (Canada): lifting column, power cord, and control box |
| Fire rating | Greenguard-Gold certified laminate desktops carry a D-s1,d0 rating per EN 13501-1 classification standard. |
| Desktop sizes | 42" W x 24" D 48" W x 24" D 1" to 1.5" thick depending on top selected |
| Shipping dimensions & weight | Desktop and accessory dimensions and weight will vary depending on selection. Wall Mounted Standing Desk Frame: 27.25" L x 14" W x 7" H, 34.6 lb |
FAQ
The total capacity of the Wall Mounted Standing Desk is 175 lb including the weight of the desktop. Desktop weight varies depending on the size and type selected.
The UPLIFT Wall Mounted Standing Desk offers smart features such as advanced anti-collision technology and a keypad lock, making the desk safer than some others on the market.
Exceptionally tight tolerances between the telescoping tubes of the three-stage leg improve desk stability, allowing you to work at the full height range without wobble.
The 22.6" to 48.7" height adjustment range (with 1" desktop attached) is compliant with ANSI/BIFMA G1-2013 height standards making this desk the right choice for offices that want the ideal height adjustability range for the widest range of people.
The Wall Mounted Standing Desk was designed specifically for tight spaces where a larger desk will not fit, with 24" deep desktops in widths of 42" and 48". Larger desktops put undue stress on the mounting hardware and cause the desk to become unstable. If you prefer a larger desk, take a look at the full range of UPLIFT Standing Desks.
Yes, this desk and mounting bracket can be attached at any height. However, in order to meet the height range requirements specified in the ANSI/BIFMA G1-2013 standard, the desk should be mounted as recommended in the instructions.
No, the desktop is fixed in place and does not fold.
Unlike similar products with two-sided brackets where only one side of the bracket attaches to the wall stud, the UPLIFT Wall Mounted Standing Desk's steel mounting bracket attaches securely with three included 10mm x 65mm lag screws centered on a single wall stud. The mounting bracket uses a triple French cleat design and screws to secure the desk leg and integrated side walls conceal the mounting lag screws after installation.
Choose from a variety of desktop styles and materials, including Greenguard-Gold Certified laminates, natural bamboo, natural-thick solid woods, and eco.
Most desk issues can be solved quickly by following our desk reset and troubleshooting instructions. These steps can be completed in just a few minutes. If you still need assistance, please contact us.
We stand firmly behind the quality of our products. All UPLIFT Desk products come with a 15 Year Warranty, visit our Warranty page for the full policy.
This product is a discounted clearance desk that does not qualify for the UPLIFT Desk Free Returns policy. Visit the Returns page for the full policy.
|
|
|
|
|
|
|---|---|---|---|---|---|
