Overview
If you're looking to upgrade to a large, corner desktop, our UPLIFT V2 L-shaped Frame provides the platform you need to build a roomy, space-efficient corner desk with both width and height adjustability. Pair this frame with an L-shaped top, and you'll have enough real estate for all of the office tools you'd want close at hand to work productively and comfortably.
Our award-winning, height adjustable desk frame features the same frame design as our 2-leg desk, which Wirecutter selected as the best standing desk overall in their comprehensive review.
Click here (pdf) to learn more about the UPLIFT V2 Frame, the UPLIFT V2-Commercial Frame, and the differences between them.
15 year warranty - all UPLIFT Desk products include a 15 year warranty
Details

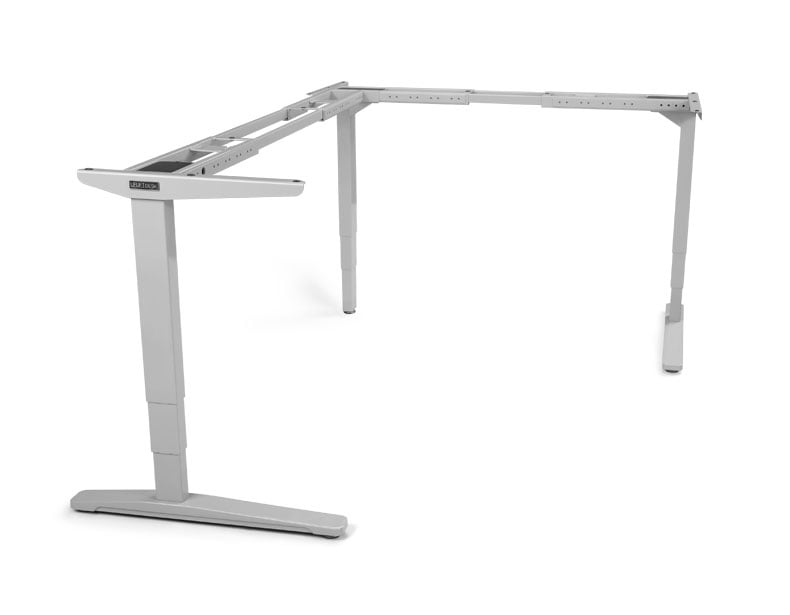

With the UPLIFT V2 L-Shaped Standing Desk Frame, we give you the freedom to mount your own desktop on our industry-leading, height adjustable workspace technology. That's a DIY desktop done right. Any top you can design, build, or buy (so long as it meets the specs) is fair game when it comes to creating the precise corner desk you have in mind.
When your goal is to build a strong, reliable, heavy-duty desk that can lift heavier desktops of the L-shaped variety, our UPLIFT V2 L-Shaped Standing Desk Frame definitely delivers. With a triple-motor design that's able to raise and lower up to 535 lb, you can rest assured that your workstation will be brawny enough to handle anything you throw at it (and on it).
Of course, we do offer a wide variety of desktops of our own. From Greenguard-Gold Certified laminate to 1" thick Moso bamboo to solid wood, we have styles to suit your space and décor. Want to see how it all comes together? Take a look at our UPLIFT V2 L-Shaped Standing Desk.
Want to see all of our desktops? Click here (pdf) to view our full selection of desktop materials, shapes, and sizes.
UPLIFT Desks are engineered for world-class stability, safety, and reliability. They feature an impressive vertical travel range of over 25.5", fast height adjustment, one-touch operation, and individual drive motors in each leg. Both the UPLIFT V2 and UPLIFT V2-Commercial Frames are built with top of the line quality components and precision machining that is built to last. So the desk you invest in today works for you well into the future with our 15-Year warranty. Certifiably sturdy and strong; both frames meet the ANSI/BIFMA X5.5-2021 standard for durability and stability.
The combination of one-to-one motor to leg ratio and advanced collision sensors result in an industry leading anti-collision system. Unlike other desk brands, the UPLIFT Desk anti-collision feature works great as the desk moves up or down, and the sensitivity can be adjusted to account for usage differences.
A desk that raises quickly to a preset height with a touch of a button is a desk that you'll use more often to keep moving. Using a desk should be effortless and fun. UPLIFT Desks are equipped with 3-stage legs with a large vertical range to allow frequent sit-stand transitions throughout each day. UPLIFT Desks have a 33% greater height range and are 33% faster than competing desks. Less-capable 2-stage desks have a substantially limited vertical travel range and are considerably slower, which can impact comfort and productivity if the desk doesn't go low or high enough for the task at hand.
The patented accessory mounting point system allows for quick and sturdy attachment of our exclusive desk accessories without the need to drill holes into your desktop. This mounting system adds sturdy modularity and ultimate customization capabilities to your dream workstation.
Both the UPLIFT V2 and UPLIFT V2-Commercial Desks have been awarded top ratings as the "Best Standing Desk" by Wirecutter 2019-2024. UPLIFT Desk has also been rated #1 by TechRadar, 9to5Mac, Lifehacker, Business Insider, Entrepreneur, Wired, and many others.
We stand firmly behind the quality of our products. All UPLIFT Desk products come with a 15 Year Warranty.
See the full Warranty Policy.
Choose between two frame types: the UPLIFT V2 or UPLIFT V2-Commercial. Both are equally stable. The key difference between the two is the height range as listed below:
For the Desk Nerds, Ready to Geek Out?
The V2 Desk has stability braces at the top of each leg for maximizing stability without the need for a lower crossbar between the legs. To provide the space needed for the stability braces, the leg orientation is inverted with the larger telescoping tube section at the top. These angular stability braces eliminate side-to-side wobble and replace the need for a lower crossbar.
For the V2-Commercial Desk to achieve a 3" lower starting height with a larger overall height adjustment range, the three telescoping leg sections were designed to be shorter and travel farther. Because of this, the telescoping leg stages overlap each other less than they do on the V2 legs. To compensate for less overlap, the V2-Commercial legs are thicker and connected by a lower crossbar. The end result is best-in-class stoutness that matches the award-winning stability of the V2 desk.
The V2-Commercial Desk was developed to optimally accommodate users under 5'4" tall. It meets the ANSI/BIFMA G1-2013 height standard to accommodate users who are a seated female 5th percentile (5'0") to a standing male 95th percentile (6'3"). We expanded this range to 4'11" to 6'5" as we've found those heights fit our desk well in most cases (for example standing males above 6'3" tall will have a slight decline angle in their forearm while using the desk and can use a keyboard tray if needed). With the lower starting height, the V2-Commercial Desk accommodates short children especially when used with a keyboard tray while seated. Using a keyboard tray brings the working height of the desk even lower, allowing the V2 desk to fit users 4'8" or taller, and the V2-Commercial desk to fit users 4'3" or taller. We also recommend the use of a keyboard tray for any intensive computer users, in order to position the keyboard and mouse ideally, so wrists are kept perfectly straight. The optimal position for your keyboard and mouse is to allow your upper arms to hang comfortably at your sides, with elbows at about 90 degrees, and wrists perfectly straight while typing and mousing. This will usually place the keyboard tray height just above your lap while seated. UPLIFT keyboard trays have 8" of height adjustment and move vertically from 5" below to 3" above the underside of the desktop. They also mount to a track spacer under the desk which is 2.8" below the desk bottom surface.
Keypads are available in Flush or Angled mount.
All Basic Keypads use constant-touch height adjustment: press and hold a button until the desk reaches the desired height.
One-touch Adjustment to 4 Saved Heights
Set up to four different heights and then tap a button to "automagically" adjust your desk to one of them. Move your chair and position a standing mat or board while the desk autonomously glides to your standing height with the help of its anti-collision system
Note that the Advanced Paddle Keypad uses a paddle instead and buttons and offers all advanced keypad functions while allowing a simple double tap of the paddle to adjust your desk to one of two saved heights.
Keypad Lock
Prevents the desk from moving until deactivated. Useful if unsupervised small children are present.
Anti-Collision system
The 6-axis electronic gyroscope sensor in the control box measures desk motion and works well to stop desk motion whether moving up or down. If needed, advanced keypads can adjust the sensitivity of the system.
1-Touch or Constant-Touch
Advanced keypads are set to one touch mode for convenient desk repositioning. Set to constant touch or lock keypad if unsupervised children are present.
Min & Max Heights
Set stop limits to trigger before the desk impacts shelves above or cabinets below.
LED Display
Adjust to a specific height with the height display. Display auto off after 10 seconds of inactivity to avoid light distraction in dark rooms.
Height Calibration
Calibrate the displayed height on the keypad. Especially useful to account for the additional height added by casters.
Patented, integrated mounting points attach accessories firmly to the steel desk frame. These 48 threaded bolt holes are built discreetly into the frame, hiding just under the desktop. Use the rock-solid attachment points to conveniently and securely attach useful accessories without drilling holes into the desktop.
This new mounting method is so sturdy, you can even hang a hammock underneath! And yes, we offer a free hammock with every UPLIFT V2 desk purchased. Please note: The hammock is only compatible with the UPLIFT V2 frame, it's not compatible with the V2-Commercial frame because it interferes with the lower stability crossbar.
Choose from CPU holders, desk extensions, power strips, hammocks, foot hammocks, etc. We are always
From the bottom of our hearts, we'd like to say thank you to our customers, for all of your support over the past 20 years.
We've built UPLIFT Desk based on your input and our goal remains the same:
We want everyone to enjoy the health, comfort and productivity benefits of a beautiful, customizable, long-lasting, high-value and thoughtfully designed standing desk that encourages more movement throughout the day.
Our products have enabled more people to work better and live healthier. Join a family of hundreds of thousands of UPLIFT Desk users, including most Fortune 500 companies.
When it comes to powering all of your devices on a standing desk, it's best to utilize a power source that moves up and down with the desktop. Not only is it more convenient to have power outlets within arm's reach, but the risk of plugs pulling out of wall sockets when the desk moves is eliminated. We have many options to choose from, there's the Power Grommet, Clamp-On Power, 8-Outlet Mountable Surge Protector, Wireless Charging Power Hub, and Power Hub with USB. Also, a power strip is included with the Basic, Advanced, and Ultimate Wire Management Kits.
Our cable management tools help keep the whole office looking clean and organized. Every UPLIFT Desk includes one Wire Management Tray to get you started. The wire tray attaches under the desktop and houses a power outlet strip, cords, and any bulky power adapters in a discreet, centralized location that moves as your desktop moves.
The very popular Magnetic Cable Organizing Channel attaches directly to the frame leg and keeps wires routed discreetly down from just under the desktop to the floor.
Our favorite place to stow cables, wires, outlet strips, and bulky power adapters is inside the Wire Management Modesty Panel. The mesh panel attaches to the back of any size desk and provides a clean finishing touch to your workspace. It's essentially a large mesh pocket with velcro closures. A 29" wide Wire Management Modesty Panel is included in the Ultimate Wire Management Kit, or select a wider Wire Management Modesty Panel.
Whether you want to furnish your office with a few desks, or purchase workstations for your whole company, planning and designing an entire office layout on your own can be a daunting task. That's why we're here to help. If you're laying out an office with four or more desks, simply complete four simple steps, and we'll configure your office desk space for free. Along with your layout, you'll also receive a discounted quote for your order. Building a new office has never been easy!
Videos
Customer Photos
Warranty + Returns
Assembly
Assembling an UPLIFT Desk is straightforward. This video provides a good overview of the UPLIFT 2-Leg V2 Desk assembly process to put your mind at ease.
The 3-Leg desk assembly process is very similar to the 2-leg desk. And the V2-Commercial Desk assembly process is very similar to the V2 desk. The primary difference is the installation of a Lower Crossbar, as shown in the V2-Commercial assembly instructions (pdf).
Proper care & use of your UPLIFT desktop
Visit the Assembly & Programming page for more information.
Get help with assembly from as low as $45 per hour. Ergonomic desk assembly can vary between 2-3 hours depending on the details of the order. You aren't charged until the assembly is completed. Enter your zip code on Taskrabbit to confirm service is available in your area. For more information, select the "Yes, send me information to book a Tasker" option above and post-order you will receive an email with assembly booking instructions. Assembly help should be arranged once you've received your product shipment.
Specs
Specification PDFs | V2 frame: V2 3-Leg Desk (pdf) V2-Commercial frame: V2-Commercial 3-Leg Desk (pdf) |
Frame height range | UPLIFT V2 Desk Frame height range: 24.3" - 49.9" H (without desktop) UPLIFT V2-Commercial Frame: 21.6" - 47.7" H (without desktop) which meets BIFMA height requirement) |
Travel height | UPLIFT V2 Frame: 25.6" of travel UPLIFT V2-Commercial Frame: 26.1" of travel |
Travel speed | 2" per second with soft start/stop actuator motors, depending on load |
Noise level | Less than 48 decibels during motion, silent when not in motion |
Width adjustment | Left side: 51.5" - 83"; Right side: 43" - 74" |
Width between frame ends (min & max) | 41.3" (fully collapsed) - 72.2" W (fully extended) |
Recommended desktop width range | 36" - 84" W |
Lifting capacity | 535 lb |
Keypad | Advanced one-touch digital memory keypad is available, push and hold up/down keypad is standard |
Adjustable foot leveling studs | 3/8" adjustment for uneven flooring |
Electrical input | 100-120VAC, 50/60Hz (450W max) |
ANSI/BIFMA X5.5-2021 | Meets ANSI/BIFMA X5.5-2021 Desk & Table Products standard for safety, durability, and structural performance. |
ANSI/BIFMA G1-2013 | V2-Commercial desks meet ANSI/BIFMA G1-2013 Ergonomic Guidelines. Click here (pdf) to learn more. |
CAN/CGSB 44.227-2008E certification | Canadian desktop deflection specification compliant with section 6.6.1/8.4 Surface Deflection |
Electrical certifications | UL (U.S. & Canada): Lifting Column, Power Cord, & Control Box |
RoHS Compliant | Yes |
Patent number | The following U.S. Patents apply to this product, Patent No.: US 11,109,672 B2 |
Shipping dimensions | Box 1 - 11" W x 41" D x 10" H, 61 lb Box 2 - 15" W x 41" D x 6" H, 41 lb |
Warranty | 15 year warranty on all UPLIFT Desk products Warranty page |
FAQ
Click here (pdf) for FAQs for our UPLIFT V2 Frame and UPLIFT V2-Commercial Frame.
Certainly not! You can install the third leg towards the back of a rectangular desktop for additional support. Contact our Sales Pros for more custom configurations.
We recommend following the guidelines in our assembly manual so that you will have the sturdiest desk possible. If you have any other configurations in mind, contact our Sales Pros, and they will be able to go over custom configurations that offer adequate support.
The most likely scenario is that one of the legs has not been properly connected. The desk will only move if all three of the legs are connected. Double-check the connections and then give us a call for further support.
The third leg is separate and can be placed anywhere. That being said, you will want to make sure that the load of your desktop is evenly dispersed between the three legs—or your desk will not be stable.
This frame can handle up to 535 pounds.
You should be able to attach the frame to the desk by yourself. However, setting the desk right-side up after installation is definitely a two-person job.
For maximum support, we suggest installing a desktop between 36" and 84" wide.
Make sure you are using a solid desktop that is at least 3/4" to 1" thick. The frame will be attached with wood screws, so make sure your desktop can support those as well.
The 3-leg standing desk frame can support up to 535 lb of distributed weight. If there is a load difference of more than 100 lb between each side of the desk, the legs may become misaligned and not function properly.
#1-Rated Frame—Named the "Best Standing Desk" by Wirecutter
Frame adjusts 2.7" lower than the UPLIFT V2 Frame.
Choose the return side for your dominant hand.
The UPLIFT V2 Frame & UPLIFT V2-Commercial Frame by UPLIFT Desk
The Whiteboard Desk by UPLIFT Desk
3-Leg Height Adjustable Desk Assembly by UPLIFT Desk
Assembling an UPLIFT Desk in Seven Minutes (In Real Time)
The ULTIMATE Work From Home Animation + VFX Workspace - 2020 Studio Tour
Modern DIY Office Desk Setup Makeover - The Process!
Most desk issues can be solved quickly by following our desk reset and troubleshooting instructions. These steps can be completed in just a few minutes. If you still need assistance, please contact us.
We stand firmly behind the quality of our products. All UPLIFT Desk products come with a 15 Year Warranty, visit the Warranty page for the full policy.
Free Returns with Free Return Shipping within 30 days, visit the Returns page for the full policy.
|
|
|
|
|
|
---|---|---|---|---|---|
FRM704 | FRM703 | FRM072 | FRM066 | FRM055 | FRM068 |
|
|
|
|
|
|
15 year warranty | 15 year warranty | 15 year warranty | 15 year warranty | 15 year warranty | 15 year warranty |
No one-touch height adjustment. Constant-touch only (press-and-hold) |
One-touch height adjustment, reprogrammable to constant-touch mode |
No one-touch height adjustment. Constant-touch only (press-and-hold) |
One-touch height adjustment, reprogrammable to constant-touch mode |
Double-tap height adjustment, reprogrammable to constant-touch mode |
No one-touch height adjustment. Constant-touch only (press-and-hold) |
No memorized sit/stand heights |
Four (4) memorized sit/stand heights |
No memorized sit/stand heights |
Four (4) memorized sit/stand heights |
Two (2) memorized sit/stand heights |
No memorized sit/stand heights |
Keypad is not lockable |
Lockable Keypad |
Keypad is not lockable |
Lockable Keypad |
Lockable Keypad |
Keypad is not lockable |
Cannot set min & max heights |
Set min & max heights |
Cannot set min & max heights |
Set min & max heights |
Set min & max heights |
Cannot set min & max heights |
No desk height calibration |
Desk height calibration |
No desk height calibration |
Desk height calibration |
Desk height calibration |
No desk height calibration |
No digital display |
Digital display |
Digital display |
Digital display |
Digital display |
No digital display |
Anti-collision system enabled |
Anti-collision system enabled |
Anti-collision system enabled |
Anti-collision system enabled |
Anti-collision system enabled |
Anti-collision system enabled |
No anti-collision sensitivity adjustment |
Anti-collision sensitivity adjustment |
Anti-collision sensitivity adjustment |
Anti-collision sensitivity adjustment |
Anti-collision sensitivity adjustment |
No anti-collision sensitivity adjustment |
Soft-touch face |
Soft-touch face |
No soft-touch face |
Soft-touch face |
No soft-touch face |
No soft-touch face |
No standing reminders |
No standing reminders |
No standing reminders |
No standing reminders |
Standing reminders |
No standing reminders |
Flush profile | Flush profile | Angled profile | Angled profile | Angled profile | |
15 year warranty | 15 year warranty | 15 year warranty | 15 year warranty | 15 year warranty | 15 year warranty |
|
|
|
|
|
|
Height range: 25.3" to 50.9" | Height range: 22.6" to 48.7" | Height range: 25.3" to 50.9" | Height range: 22.6" to 48.7" | Height range: 24.5" to 50.1" | Height range: 22.6" to 48.7" |
Width range: 41.3" to 72.2" | Width range: 41.3" to 72.2" | Width range: Main side: 51.5" to 83" Return side: 43" to 74" | Width range: Main side: 51.5" to 83" Return side: 43" to 74" | Width range: 41.3" to 72.2" | Width range: 41.3" to 72.2" |
355 lb lifting capacity | 355 lb lifting capacity | 535 lb lifting capacity | 535 lb lifting capacity | 535 lb lifting capacity | 535 lb lifting capacity |
Stability corner brace | Stability crossbar | Stability corner brace | Stability crossbar | Stability corner brace | Stability crossbar |
3-stage legs |
3-stage legs |
3-stage legs |
3-stage legs |
3-stage legs |
3-stage legs |
2 whisper quiet motors | 2 whisper quiet motors | 3 whisper quiet motors | 3 whisper quiet motors | 4 whisper quiet motors | 4 whisper quiet motors |
48 accessory mounting points on frame | 48 accessory mount points | 88 accessory mounting points on frame | 88 accessory mount points | No accessory mounting points on frame | No accessory mounting points on frame |
Anti-collision sensor |
Anti-collision sensor |
Anti-collision sensor |
Anti-collision sensor |
Anti-collision sensor |
Anti-collision sensor |
Meets ANSI/BIFMA X5.5-2021 durability standards. |
Meets ANSI/BIFMA X5.5-2021 durability standards. |
Meets ANSI/BIFMA X5.5-2021 durability standards. |
Meets ANSI/BIFMA X5.5-2021 durability standards. |
Meets ANSI/BIFMA X5.5-2021 durability standards. |
Meets ANSI/BIFMA X5.5-2021 durability standards. |
Doesn't meet ANSI/BIFMA G1-2013 height standards |
Meets ANSI/BIFMA G1-2013 height standards |
Doesn't meet ANSI/BIFMA G1-2013 height standards |
Meets ANSI/BIFMA G1-2013 height standards |
Doesn't meet ANSI/BIFMA G1-2013 height standards |
Meets ANSI/BIFMA G1-2013 height standards |
15 year warranty |
15 year warranty |
15 year warranty |
15 year warranty |
15 year warranty |
15 year warranty |
