Overview

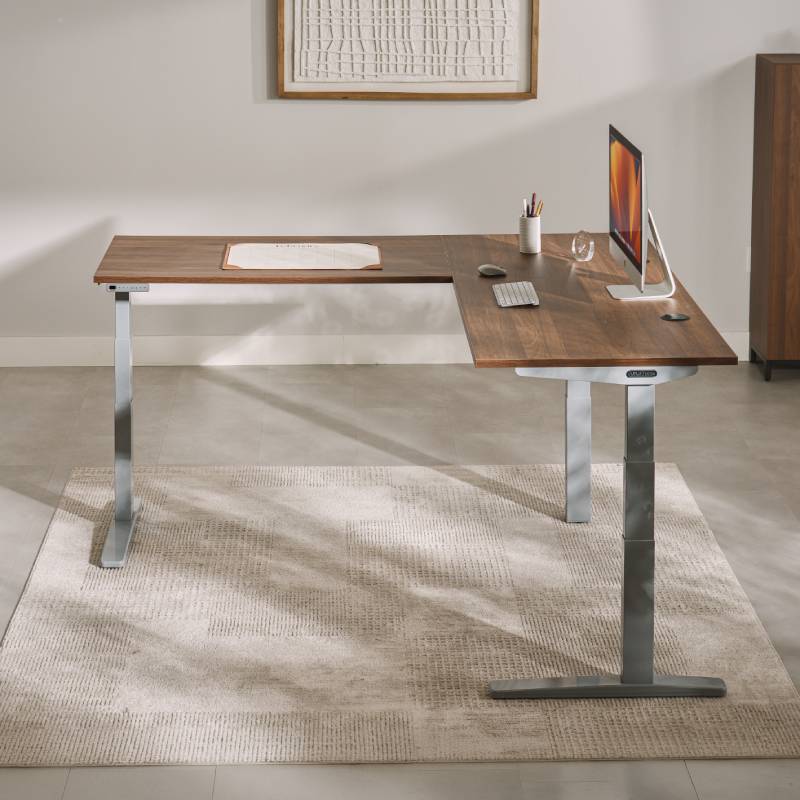

Need more desk space? The L-shape design creates the perfect corner desk: large enough to hold all the things you need to get the job done, with customized styling so you look good doing it.
Your future L-shaped corner desk has been upgraded to the industry-leading, award-winning, height adjustable UPLIFT V2 Frame. It's the same frame design as our 2-leg desk, which Wirecutter selected as the "Best Standing Desk" overall in their comprehensive review.
Whether you choose the UPLIFT V2 Frame or the UPLIFT V2-Commercial Frame, you're getting the most advanced sit-stand desk available.
Click here (pdf) to learn more about the UPLIFT V2 Frame, the UPLIFT V2-Commercial Frame, and the differences between them.
Our 1" desktops are 33% thicker than competitors' desktops and bring added stability. We offer three different earth-friendly materials: bamboo, Greenguard-Gold Certified laminate, and rubberwood solid wood.
15 year warranty - all UPLIFT Desk products include a 15 year warranty
Details
Our L-shaped extensions are designed to be used on either side of your main desktop. During the online desk building process, we ask you which side you want your extension on so we can show you what your new desk will look like—but don't worry if you don't know. You can always change your mind later after you receive your new desk.
Our 1" thick Moso bamboo is an environmentally sustainable resource that is harvested and finished with no chemicals or dyes. It's a natural desktop that is harder than solid wood.
Our Greenguard-Gold Certified laminates offer a traditional office material and appearance while being produced with only environmentally safe, non-hazardous materials.
Our solid wood rubberwood desktop is made from a dense hardwood that's harvested at the end of its life. It's one of the most resilient desktop materials you'll find anywhere, and is produced and finished using only environmental, non-hazardous glues and coatings.
We recommend that you click here (pdf) to view our wide selection of desktop materials, shapes, and sizes.
UPLIFT Desks are engineered for world-class stability, safety, and reliability. They feature an impressive vertical travel range of over 25.5", fast height adjustment, one-touch operation, and individual drive motors in each leg. Both the UPLIFT V2 and UPLIFT V2-Commercial Frames are built with top of the line quality components and precision machining that is built to last. So the desk you invest in today works for you well into the future with our 15-Year warranty. Certifiably sturdy and strong; both frames meet the ANSI/BIFMA X5.5-2021 standard for durability and stability.
The combination of one-to-one motor to leg ratio and advanced collision sensors result in an industry leading anti-collision system. Unlike other desk brands, the UPLIFT Desk anti-collision feature works great as the desk moves up or down, and the sensitivity can be adjusted to account for usage differences.
A desk that raises quickly to a preset height with a touch of a button is a desk that you'll use more often to keep moving. Using a desk should be effortless and fun. UPLIFT Desks are equipped with 3-stage legs with a large vertical range to allow frequent sit-stand transitions throughout each day. UPLIFT Desks have a 33% greater height range and are 33% faster than competing desks. Less-capable 2-stage desks have a substantially limited vertical travel range and are considerably slower, which can impact comfort and productivity if the desk doesn't go low or high enough for the task at hand.
The patented accessory mounting point system allows for quick and sturdy attachment of our exclusive desk accessories without the need to drill holes into your desktop. This mounting system adds sturdy modularity and ultimate customization capabilities to your dream workstation.
Both the UPLIFT V2 and UPLIFT V2-Commercial Desks have been awarded top ratings as the "Best Standing Desk" by Wirecutter.
UPLIFT Desk has also been rated #1 by TechRadar, 9to5Mac, Lifehacker, Business Insider, Entrepreneur, Wired, and many others.
We stand firmly behind the quality of our products. All UPLIFT Desk products come with a 15 Year Warranty.
See the full Warranty Policy.
Choose between two frame types: the UPLIFT V2 or UPLIFT V2-Commercial. Both are equally stable. The key difference between the two is the height range as listed below:
For the Desk Nerds, Ready to Geek Out?
The V2 Desk has stability braces at the top of each leg for maximizing stability without the need for a lower crossbar between the legs. To provide the space needed for the stability braces, the leg orientation is inverted with the larger telescoping tube section at the top. These angular stability braces eliminate side-to-side wobble and replace the need for a lower crossbar.
For the V2-Commercial Desk to achieve a 3" lower starting height with a larger overall height adjustment range, the three telescoping leg sections were designed to be shorter and travel farther. Because of this, the telescoping leg stages overlap each other less than they do on the V2 legs. To compensate for less overlap, the V2-Commercial legs are thicker and connected by a lower crossbar. The end result is best-in-class stoutness that matches the award-winning stability of the V2 desk.
The V2-Commercial Desk was developed to optimally accommodate users under 5'4" tall. It meets the ANSI/BIFMA G1-2013 height standard to accommodate users who are a seated female 5th percentile (5'0") to a standing male 95th percentile (6'3"). We expanded this range to 4'11" to 6'5" as we've found those heights fit our desk well in most cases (for example standing males above 6'3" tall will have a slight decline angle in their forearm while using the desk and can use a keyboard tray if needed). With the lower starting height, the V2-Commercial Desk accommodates short children especially when used with a keyboard tray while seated. Using a keyboard tray brings the working height of the desk even lower, allowing the V2 desk to fit users 4'8" or taller, and the V2-Commercial desk to fit users 4'3" or taller. We also recommend the use of a keyboard tray for any intensive computer users, in order to position the keyboard and mouse ideally, so wrists are kept perfectly straight. The optimal position for your keyboard and mouse is to allow your upper arms to hang comfortably at your sides, with elbows at about 90 degrees, and wrists perfectly straight while typing and mousing. This will usually place the keyboard tray height just above your lap while seated. UPLIFT keyboard trays have 8" of height adjustment and move vertically from 5" below to 3" above the underside of the desktop. They also mount to a track spacer under the desk which is 2.8" below the desk bottom surface.
Keypads are available in Flush or Angled mount.
All Basic Keypads use constant-touch height adjustment: press and hold a button until the desk reaches the desired height.
One-touch Adjustment to 4 Saved Heights
Set up to four different heights and then tap a button to "automagically" adjust your desk to one of them. Move your chair and position a standing mat or board while the desk autonomously glides to your standing height with the help of its anti-collision system
Note that the Advanced Paddle Keypad uses a paddle instead and buttons and offers all advanced keypad functions while allowing a simple double tap of the paddle to adjust your desk to one of two saved heights.
Keypad Lock
Prevents the desk from moving until deactivated. Useful if unsupervised small children are present.
Anti-Collision system
The 6-axis electronic gyroscope sensor in the control box measures desk motion and works well to stop desk motion whether moving up or down. If needed, advanced keypads can adjust the sensitivity of the system.
1-Touch or Constant-Touch
Advanced keypads are set to one touch mode for convenient desk repositioning. Set to constant touch or lock keypad if unsupervised children are present.
Min & Max Heights
Set stop limits to trigger before the desk impacts shelves above or cabinets below.
LED Display
Adjust to a specific height with the height display. Display auto off after 10 seconds of inactivity to avoid light distraction in dark rooms.
Height Calibration
Calibrate the displayed height on the keypad. Especially useful to account for the additional height added by casters.
Get the most out of your standing desk with sitting and standing reminders, standing time and calorie tracking, desk height control, and memory settings.
Move your body regularly throughout the day to improve productivity, mood, energy, and health.
Read complete details on the UPLIFT Desk App page.
View the Desk App Terms and Conditions.
View the UPLIFT Desk App Privacy Policy.
The Bluetooth adapter unlocks the functionality of the UPLIFT Desk App
Our patented UPLIFT V2 Frame design includes discreet built-in mounting holes that enable you to attach accessories directly to your frame. We have many frame attachments planned for release, including desk extensions, CPU holders, and power strips—just to name a few.
From the bottom of our hearts, we'd like to say thank you to our customers, for all of your support over the past 20 years.
We've built UPLIFT Desk based on your input and our goal remains the same:
We want everyone to enjoy the health, comfort and productivity benefits of a beautiful, customizable, long-lasting, high-value and thoughtfully designed standing desk that encourages more movement throughout the day.
Our products have enabled more people to work better and live healthier. Join a family of hundreds of thousands of UPLIFT Desk users, including most Fortune 500 companies.
Employees at Girlstart enjoying one of their donated UPLIFT Desks.
We're honored to be named the "Best Standing Desk" by Wirecutter for 4 years in a row. We are also rated #1 by Techradar, 9to5Mac and many others. See more UPLIFT Desk reviews.
When it comes to powering all of your devices on a standing desk, it's best to utilize a power source that moves up and down with the desktop. Not only is it more convenient to have power outlets within arm's reach, but the risk of plugs pulling out of wall sockets when the desk moves is eliminated. We have many options to choose from, there's the Power Grommet, Clamp-On Power, 8-Outlet Mountable Surge Protector, Wireless Charging Power Hub, and Power Hub with USB. Also, a power strip is included with the Basic, Advanced, and Ultimate Wire Management Kits.
Our cable management tools help keep the whole office looking clean and organized. Every UPLIFT Desk includes one Wire Management Tray to get you started. The wire tray attaches under the desktop and houses a power outlet strip, cords, and any bulky power adapters in a discreet, centralized location that moves as your desktop moves.
The very popular Magnetic Cable Organizing Channel attaches directly to the frame leg and keeps wires routed discreetly down from just under the desktop to the floor.
Our favorite place to stow cables, wires, outlet strips, and bulky power adapters is inside the Wire Management Modesty Panel. The mesh panel attaches to the back of any size desk and provides a clean finishing touch to your workspace. It's essentially a large mesh pocket with velcro closures. A 29" wide Wire Management Modesty Panel is included in the Ultimate Wire Management Kit, or select a wider Wire Management Modesty Panel.
We understand it can be a challenge to plan and design an entire office layout on your own. Our team is here to help. If you are laying out an office with four or more desks, simply complete four simple steps, and we'll configure your office desk space for free, no strings attached. Along with your layout, you'll also receive a discounted quote, turning your flexible office dream into an affordable reality.
Videos
Customer Photos
Warranty + Returns
Assembly
Assembling an UPLIFT Desk is straightforward. This video provides a good overview of the UPLIFT 2-Leg V2 Desk assembly process to put your mind at ease.
The 3-Leg desk assembly process is very similar to the 2-leg desk. And the V2-Commercial Desk assembly process is very similar to the V2 desk. The primary difference is the installation of a Lower Crossbar, as shown in the V2-Commercial assembly instructions (pdf).
Visit the Assembly & Programming page for more information.
Get help with assembly from as low as $45 per hour. Ergonomic desk assembly can vary between 2-3 hours depending on the details of the order. You aren't charged until the assembly is completed. Enter your zip code on Taskrabbit to confirm service is available in your area. For more information, select the "Yes, send me information to book a Tasker" option above and post-order you will receive an email with assembly booking instructions. Assembly help should be arranged once you've received your product shipment.
Specs
| V2 3-leg frame specifications |
|
| V2-Commercial 3-leg frame specifications |
|
| Warranty | 15 year warranty on all UPLIFT Desk products Warranty page |
| Travel speed | 1.6" per second with soft start/stop actuator motors, depending on load |
| Noise level | Less than 50 decibels during motion, silent when not in motion |
| Desktop thickness | Solid wood (besides bamboo): 1.75" Bamboo: 1.5" |
| Width between frame ends (min & max) | 41.3" (completely collapsed) - 72.2" W (completely extended) |
| Lifting capacity | 535 lb (inclusive of desktop weights) |
| Adjustable foot leveling studs | 0.38" adjustment for uneven flooring |
| Electrical input | 100-120VAC, 50/60Hz (500W max) |
| Greenguard-Gold Laminate Fire Rating | Greenguard-Gold Laminate desktops carry a D-s1,d0 rating per EN 13501-1 classification standard |
| ANSI/BIFMA X5.5-2021 Desk Standard certification | Both the UPLIFT V2 and UPLIFT V2-Commercial Frame are compliant to ANSI/BIFMA X5.5-2021 Desk/Table Products for safety, durability, and structural performance including Height Adjustable Desk/Table Surfaces tests. |
| ANSI/BIFMA G1-2013 Height Standard certification | The UPLIFT V2-Commercial sit/stand desk frame is ANSI/BIFMA G1-2013 Height Standard compliant when used with a 1" thick desktop. This makes the V2-Commercial height adjustable desk suitable for most users, accommodating a seated 5th percentile (5'0") to a standing 95th percentile (6'3"). For greater working height range, add a keyboard tray as you configure your desk. With a keyboard tray the V2-Commercial standing desk accommodates users 4'4" tall and up, while the V2 standing desk accommodates users 4'8" tall and up. |
| CAN/CGSB 44.227-2008E certification | Canadian desktop deflection specification compliant with section 6.6.1/8.4 Surface Deflection |
| Electrical certifications | UL (U.S.)/CSA (Canada): Lifting Column, Power Cord, & Control Box |
| Patent number | The following U.S. Patents apply to this product, Patent No.: US 11,109,672 B2 |
| RoHS Compliant | Yes. Lifting columns (legs) and control box. |
| Shipping dimensions & weight | Desktop and accessory dimensions and weight will vary depending on selection. V2 Standing Desk Frame: Frame Box 1: 41.5" L x 15.5" W x 6" H, 44.15 lb Frame Box 2: 39.4" L x 11.1" W x 7.6" H, 51.1 lb V2 C-Frame Feet Box: 29.5" L x 10" W x 4.5" H, 12.5 lb V2-Commercial Standing Desk Frame: Frame Box 1: 41" L x 15.25" W x 6" H, 44 lb Frame Box 2: 39.6" L x 11.25" W x 7.75" H, 54.5 lb V2-Commercial C-Frame Feet Box: 29.5" L x 9.5" W x 4.75" H, 23 lb V2-Commercial Frame Crossbar Box: 40.5" L x 7.5" W x 6" H, 15.5 lb |
FAQ
Click here (pdf) for FAQs for our UPLIFT V2 Frame and UPLIFT V2-Commercial Frame.
Child lock and anti-collision. The keypad lock feature blocks the functionality of the keypad, perfect for preventing injury in spaces where children may be present. The anti-collision feature, which includes an integrated accelerometer and six-axis technology in the control box, stops the desk from moving if it collides with objects while rising or lowering.
Typically, height adjustable desk frames that meet the extended height range requirement of the ANSI/BIFMA G1-2013 standard are not as stable at their maximum height and tend to wobble. This is due to the reduced overlap between the legs' telescoping tubes. To remedy this issue, we added a steel telescoping crossbar between the frame legs to reduce side-to-side movement. In addition, we increased the cross-sectional area of the V2-Commercial Frame legs by 33%, which further increases frame stability. Both the frame and the lower crossbar adjust in width to fit desktops from 42" to 80" wide.
Our UPLIFT V2 Frame does not require a lower crossbar for stability because we designed it with a stability brace (pdf) at the top of each leg.
Both frames include dual crossbar rails just beneath the desktop for additional, hidden support. If you have any questions at all about which desk is right for you, please don't hesitate to contact us.
All of our desks come with a motor in each leg, which means our 3-leg desks come with three motors. This makes our height adjustable desks quieter, safer, stronger, and more reliable than desks that adjust for height via a single motor.
The Durability X5.5-2021 Standard ensures that both of our UPLIFT V2 Frames meet or exceed strict tests of desk loading, racking, leg strength, vertical adjustment, and cycle testing.
The UPLIFT V2-Commercial Frame supports ergonomic working postures (pdf) for 5th-percentile females (5'0") through 95th-percentile males (6'3") in both seated and standing positions. This means it meets the ANSI/BIFMA G1-2013 standing desk height requirements due to its height range of 22.6" to 48.7" with a 1" desktop installed. Meeting the ANSI/BIFMA G1-2013 standard is important for offices wishing to comply with BIFMA standards and for shorter users. Alternatively, the V2 Frame accommodates taller people (over 6'4") better than the V2-Commercial Frame.
Check the small label on your control box, usually located on the end next to where the power cord plugs in. This label has all the information you need to tell which program is on your control box. Compare the program number on your control box that starts with "99" to the program numbers found on the control box compatibility list (pdf) to determine what features can be accessed with your control box, as well as compatibility with the UPLIFT Bluetooth Adapter and Advanced Paddle Keypad.
Control boxes shipped as far back as 2017 include upgraded safety features, including the integrated accelerometer and six-axis technology. This feature improves the sensitivity of the anti-collision detection, stopping the desk more effectively if it collides with anything during movement. Combined with our Advanced Keypads, these control boxes also include features such as a Keypad Lock feature that blocks the function of the keypad so other people can't access it, a safety benefit in home offices where children are present. Additionally, you'll be able to switch between One-Touch and Constant-Touch desk movement modes or change the LED display between inches and centimeters. You can also set maximum and minimum desk height limits to prevent your desk from running into fixed objects like shelves or file cabinets. Compare the program number (starting with "99") on the control box label to the program numbers found on the control box compatibility list (pdf) to determine the capabilities of your control box.
We recommend a desk that is at least 72" wide for use with a treadmill. At that size, you can keep your treadmill handy while still being able to stand or sit next to it. Some people do place a stool on the treadmill when they'd like to sit.
Unfortunately, no. Our desktops only come with the grain running lengthwise.
Your desk will include two brackets, which you will use to join the two tops together. Make sure that the desktop is on a level surface when installing the brackets, and that there is no space between the two desktops.
When you receive your desktop, you will install two support brackets to connect the two tops together. There are also two crossbars that run along the underside of the desk. Both of these support measures combine to provide a very sturdy desk.
After purchasing desktop samples, you can apply the cost of the samples towards your new desk.
Visit the Desktop Samples page to order samples of stocked laminate, bamboo, butcher block solid wood, and wide plank or live edge solid wood.
Visit the Custom Solid Wood Desktop Samples page to order samples of custom solid wood desktops.
Visit Wilsonart to order samples of custom laminate desktops, you can choose from hundreds of different Wilsonart High Pressure Laminates (HPL). View Wilsonart colors by Design Group or by Color Group.
You can purchase a custom made laminate or solid wood desk on the following pages:
Take a look at the Proper Care & Use of your UPLIFT Desktop page.
Yes, not only do we construct our desktops with high-quality European E1-level adhesives, we seal them all with a UV-cured protective coating that doesn't off-gas or emit VOCs.
Greenguard-Gold certification (pdf) means that our laminate tops have been rigorously tested by an independent, third-party laboratory and meet strict UL guidelines for emissions of chemicals such as formaldehyde. Our desktops are safe for use in homes, schools, healthcare environments, and commercial spaces.
While most of our competitors offer a 3/4" thick bamboo desktop, our bamboo desktops are a full 1" thick, consisting of three individual layers of bamboo reeds arranged in alternating directions. This construction approach not only dramatically increases the strength of the desktop but also adds an appealing aesthetic effect along the edges of the top that we know you'll appreciate. Our 1" desktops are a full 33% thicker than the competition, adding extra durability to eliminate sagging. And our tops just last longer.
All UPLIFT Desks operate on an input voltage of 120 Vac, but you can purchase a 240 Vac rated control box here. If you are located in an area that does not provide 120V and you don't want to purchase a 240 Vac control box for your desk, you MUST use an acceptable step down transformer to be covered by the desk's warranty. Neglecting to use a proper step down transformer or not connecting to a 120V power source will cause permanent damage to the desk's electrical components. Using a 120V plug adapter is not sufficient.

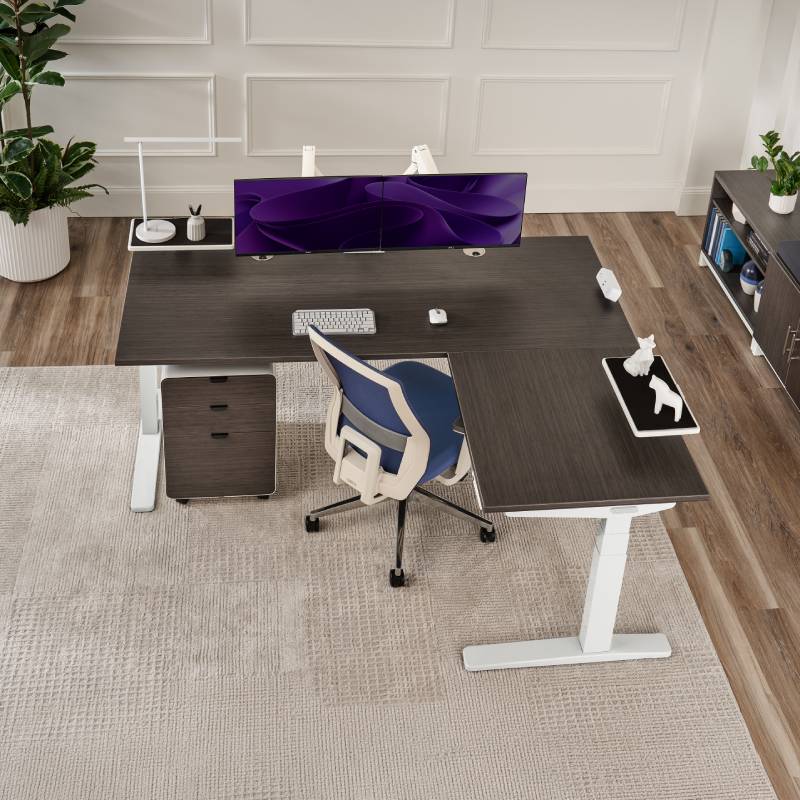

L-shape design creates the perfect corner desk: large enough to hold all the things you need to get the job done.
Most desk issues can be solved quickly by following our desk reset and troubleshooting instructions. These steps can be completed in just a few minutes. If you still need assistance, please contact us.
We stand firmly behind the quality of our products. All UPLIFT Desk products come with a 15 Year Warranty, visit the Warranty page for the full policy.
Free Returns with Free Return Shipping within 30 days, visit the Returns page for the full policy.
|
|
|
|
|
|
|---|---|---|---|---|---|
| FRM704 | FRM703 | FRM072 | FRM066 | FRM055 | FRM068 |
|
|
|
|
|
|
|
| 15 year warranty | 15 year warranty | 15 year warranty | 15 year warranty | 15 year warranty | 15 year warranty |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Flush profile | Flush profile | Angled profile | Angled profile | Angled profile | |
|
|
|
|
|
| Most popular standing desk. 30" deep desktop. | Saves space by eliminating the sometimes unused rear 6" of a desktop. | Most desktop space. 3-legs for extra stability and lifting power. | Large single piece desktop. 3-legs for extra stability and lifting power. | 4-leg design for rock solid stability and maximum lifting power. | Select from hundreds of desktop colors and sizes. Specify any desktop size. |
Select from hundreds of desktop colors and sizes. Specify any desktop size. Saves space by eliminating the sometimes unused rear 6" of a desktop. |
Select from hundreds of desktop colors and sizes. Large desktop area. Specify any desktop size. 3-legs for extra stability and lifting power. | Wide-plank solid wood desktops in multiple species. Specify any desktop size. | Wide-plank solid wood desktops in multiple species. Large desktop area. Specify any desktop size. 3-legs for extra stability and lifting power. | Create unique and fun workplace desk configurations. dog bone layout. |
Small conference table. Turn long meetings into more active sit/stand meetings. | Large conference table. Turn long meetings into more active sit/stand meetings. | Very large conference table that's also a ping-pong table. Turn long meetings into more active sit/stand meetings. | Built-in table storage for craft supplies. Sit/stand during your hobby. | Ideal for small spaces. |
|
Desktop material and thickness:
|
Desktop material and thickness:
|
Desktop material and thickness:
|
Desktop material and thickness:
|
Desktop material and thickness:
|
Desktop material and thickness:
|
Desktop material and thickness:
|
Desktop material and thickness:
|
Desktop material and thickness:
Solid Wood:
|
Desktop material and thickness:
Solid Wood:
|
Desktop material and thickness:
|
Desktop material and thickness:
|
Desktop material and thickness:
|
Desktop material and thickness:
|
Desktop material and thickness:
Solid Wood:
|
Desktop material and thickness:
|
| Desktop widths:
42" to 80" |
Desktop widths:
42" to 72" (some tops up to 80") |
Desktop widths:
Main: 60" to 80" Return: 30" or 48" |
Desktop widths:
72" |
Desktop widths:
60" to 80" |
Desktop widths:
42" to 80" |
Desktop widths:
42" to 80" |
Desktop widths:
Main: 54" to 80" Return: 54" to 84" |
"Desktop widths:
42" to 80" |
Desktop widths:
Main: 54" to 80" Return: 54" to 84" |
Desktop width:
71.7" |
Desktop width:
80" |
Desktop width:
Without leaf: 96" With leaf: 108" |
Desktop width:
108" |
Desktop width:
60" |
Desktop width:
42" and 48" |
| Desktop depth:
30" |
Desktop depth:
24" |
Desktop depths:
Main: 30" Return: 27.5" |
Desktop depths
Main: 28" Return: 28" |
Desktop depth:
30" |
Desktop depth:
30" |
Desktop depth:
24" |
Desktop depths
Main: 30" Return: 27.5" |
Desktop depth:
30" |
Desktop depths
Main: 30" Return: 27.5" |
Desktop depth:
38.4" |
Desktop depth:
30" |
Desktop depth:
42" |
Desktop depth:
60" |
Desktop depth:
30" |
Desktop depth:
24" |
| 2-leg desk | 2-leg desk | 3-leg desk | 3-leg desk | 4-leg desk | 2-leg desk | 2-leg desk | 3-leg desk | 2-leg desk | 3-leg desk | 2-leg desk | 2-leg desk | 4-leg desk | 4-leg desk | 2-leg desk | 1-leg desk |
| 2 whisper quiet motors <50db | 2 whisper quiet motors <50db | 3 whisper quiet motors <50db | 3 whisper quiet motors <50db | 4 whisper quiet motors <50db | 2 whisper quiet motors <50db | 2 whisper quiet motors <50db | 3 whisper quiet motors <50db | 2 whisper quiet motors <50db | 3 whisper quiet motors <50db | 2 whisper quiet motors <50db | 2 whisper quiet motors <50db | 4 whisper quiet motors <50db | 4 whisper quiet motors <50db | 2 whisper quiet motors <50db | 1 whisper quiet motor <50db |
| Desk frame type:
V2 or V2-Commercial |
Desk frame type:
V2 or V2-Commercial |
Desk frame type:
V2 or V2-Commercial |
Desk frame type:
V2 or V2-Commercial |
Desk frame type:
V2 or V2-Commercial |
Desk frame type:
V2 or V2-Commercial |
Desk frame type:
V2 or V2-Commercial |
Desk frame type:
V2 or V2-Commercial |
Desk frame type:
V2 or V2-Commercial |
Desk frame type:
V2 or V2-Commercial |
Desk frame type:
V2 |
Desk frame type:
V2 or V2-Commercial |
Desk frame type:
V2 |
Desk frame type:
V2 |
Desk frame type:
V2 or V2-Commercial |
Desk frame type:
Wall mounted |
| Height range with 1" Desktop:
V2 frame: 25.3" to 50.9" V2-Comm frame: 22.6" to 48.7" |
Height range with 1" Desktop:
V2 frame: 25.3" to 50.9" V2-Comm frame: 22.6" to 48.7" |
Height range with 1" Desktop:
V2 frame: 25.3" to 50.9" V2-Comm frame: 22.6" to 48.7" |
Height range with 1" Desktop:
V2 frame: 25.3" to 50.9" V2-Comm frame: 22.6" to 48.7" |
Height range with 1" Desktop:
V2 frame: 24.5" to 50.1" V2-Comm frame: 22.6" to 48.7" |
Height range with 1" Desktop:
V2 frame: 24.5" to 50.1" V2-Comm frame: 22.6" to 48.7" |
Height range with 1" Desktop:
V2 frame: 24.5" to 50.1" V2-Comm frame: 22.6" to 48.7" |
Height range with 1" Desktop:
V2 frame: 24.5" to 50.1" V2-Comm frame: 22.6" to 48.7" |
Height range with 1" Desktop:
V2 frame: 24.5" to 50.1" V2-Comm frame: 22.6" to 48.7" |
Height range with 1" Desktop:
V2 frame: 24.5" to 50.1" V2-Comm frame: 22.6" to 48.7" |
Height range with 1" Desktop:
V2 frame: 25.3" to 50.9" |
Height range with 1" thick table top:
V2 frame: 24.5" to 50.1" V2-Comm frame: 22.6" to 48.7" |
Height range with 1" thick desktop:
V2 frame: 25.3" to 50.9" |
Height range with 1" thick desktop:
V2 frame: 25.3" to 50.9" |
Height range with 4.6" thick desktop:
V2 frame: 28.9" to 54.5" V2-Comm frame: 26.2" to 52.3" |
Height range with 1" thick desktop:
22.6" to 48.7" |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 48 accessory mounting points on frame | 48 accessory mounting points on frame | 88 accessory mounting points on frame | 48 accessory mounting points on frame | No accessory mounting points on frame | 48 accessory mounting points on frame | 48 accessory mounting points on frame | 88 accessory mounting points on frame | 48 accessory mounting points on frame | 88 accessory mounting points on frame | 48 accessory mounting points on frame | 48 accessory mounting points on frame | No accessory mounting points on frame | No accessory mounting points on frame | 48 accessory mounting points on frame | No accessory mounting points on frame |
| Lifting capacity:
355 lb |
Lifting capacity:
355 lb |
Lifting capacity:
535 lb |
Lifting capacity:
535 lb |
Lifting capacity:
535 lb |
Lifting capacity:
355 lb |
Lifting capacity:
355 lb |
Lifting capacity:
535 lb |
Lifting capacity:
355 lb |
Lifting capacity:
535 lb |
Lifting capacity:
355 lb |
Lifting capacity:
355 lb |
Lifting capacity:
535 lb |
Lifting capacity:
535 lb |
Lifting capacity:
355 lb |
Lifting capacity:
175 lb |
|
Frame colors: |
Frame colors: |
Frame colors: |
Frame colors: |
Frame colors: |
Frame colors: |
Frame colors: |
Frame colors: |
Frame colors: |
Frame colors: |
Frame colors: |
Frame colors: |
Frame colors: |
Frame colors: |
Frame colors: |
Frame colors: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
