UPLIFT OneWall Cubicle Acoustic Office Partition

SKU: ACU013-CUBICLE
Was:
$4795
UPLIFT OneWall Cubicle Acoustic Office Partition
Was:
$4795

Ships same business day if ordered by 3pm Central Time



Overview

OneWall Cubicle Acoustic Office Partition

  • Modular acoustic cubicle walls - provide privacy and reduce noise with the modular OneWall system, designed to enhance any space thanks to telescoping frames and four panel sizes
  • Adaptable configurations - every frame accommodates 40", 52", 64", and 72" acoustic panel widths, and straight, L, T, or 4-way connecting brackets facilitate flexible cubicle layouts that can change over time
  • Create quiet - dampen sound in open areas with panels that absorb 85% of the sound that hits them
  • Sturdy, eco-friendly materials - sturdy acoustic panels are made from 50% recycled material
  • Tackable panels - use thumbtacks to hang notes and pictures on panels
  • Optional overhead canopy - provide overhead light reduction, reduce ambient noise even further, and add a greater sense of privacy. Canopies can be purchased configured with the OneWall Cubicle Acoustic Office Partition configuration or purchased later from the OneWall Canopy page
  • Part of the OneWall line - pairs with the OneWall Mobile Acoustic Office Partition and existing line of acoustic panels, keeping style and colors consistent throughout the office
  • Panel hole finder for easier install - use the Acoustic Panel Hole Finder Tool for finding the plugged pre-cut holes on acoustic panels
  • 15 year warranty - all UPLIFT Desk products include a 15 year warranty
An animation showing every color of the OneWall Cubicle Acoustic Office Partition

OneWall Cubicle Acoustic Office Partition Configuration Gallery

Configuration 1

Configuration 2

Configuration 3

Configuration 4

Configuration 5

Configuration 6





Details

A White Laminate L-Shaped UPLIFT Standing Desk in a OneWall Cubicle with Canopy

Dampen Sound in Open Offices

Large open office spaces are great for promoting collaboration and a healthy team culture, but the noise that comes along with them can be distracting. Create a sound-dampened space conducive to concentration and productivity with UPLIFT OneWall Cubicle Acoustic Office Partitions.

The acoustic privacy panels attached to the OneWall Cubicle and the Mobile Acoustic Office Partition absorb ambient sound with a 0.85 Noise Reduction Coefficient (NRC). This means that 85% of sound that hits the panels isn't reflected back into the office space.

Each wall section is composed of three acoustic panels on each side of the wall frame sections. The space between the panels on each side maximizes the acoustic dampening properties of the wall, reducing distractions and improving productivity in the workplace. Add optional OneWall Canopies to cubicle configurations for additional noise reduction.

Maintain Focus & Increase Productivity

Constant, noisy interruptions in the office are distracting and decrease productivity. The 5'10" tall OneWall Cubicle Acoustic Partitions reduce ambient noise and provide visual and acoustic privacy, improving focus and efficiency.

Top It Off with a Canopy

An optional matching canopy panel can be added to the top of partitions to further reduce ambient noise and reduce eyestrain by blocking harsh overhead lighting. Canopies can further increase comfort by providing greater privacy and focus in an open office environment.

Light Gray OneWall Cubicle Acoustic Office Partitions with V2 Standing Desk 72" W x 24" D desk size
Light Gray OneWall Cubicle Acoustic Office Partitions with different cubicle configurations

Create Custom Office Layouts

OneWall partitions offer superior adjustability and flexibility. The telescoping frame design fits 40", 52", 64", and 72" wide acoustic panels. Simply set the frame width and attach the panels to build the perfect office layout. Connecting brackets join wall sections together creating linear, L-shaped, T-shaped, or four-way cubicle wall configurations. The appropriate connecting brackets needed for the various cubicle configurations are included.

Redesign spaces using the same frames. Just order new acoustic panels if needed and any additional connecting brackets. Give us a call, and we'll help you purchase the right acoustic panels and connecting brackets for the new layout.

OneWall Mobile Acoustic Office Partitions are a great solution for open areas where forming cubicles isn't a priority. Place them along walls or aisles to add acoustic absorption and a pop of color.

Align the Design

OneWall Cubicle Acoustic Office Partition panel colors match other functional and attractive UPLIFT acoustic and privacy products providing a cohesive appearance throughout the office.

The same Acoustic Privacy Panels attach to desks, tables, and Power and Data Rails. Use the Desktop Privacy Panel Holder to keep panels in place on desks and conference tables without physically attaching them. Align designs even further with the OneWall Mobile Acoustic Office Partition, Freestanding Acoustic Privacy Panel Holder, Acoustic Wall Panels, and Acoustic Ceiling Clouds.

Light Gray OneWall Cubicle Acoustic Office Partitions and OneWall Mobile Acoustic Office Partition with SoCo Lounge Seating Collection
Light Gray OneWall Cubicle Acoustic Office Partition with V2-Commercial L-Shaped Standing Desk, Narrow 2-Drawer Cabinets and Pursuit Ergonomic Chair

Functional & Eco-Friendly

The OneWall Cubicle Acoustic Office Partition is built with sturdy and environmentally friendly panels. These high quality acoustic panels are composed of 50% recycled dense polyester fiberboard. Not only do the panels look great and reduce noisy distractions, they're also tackable, making them perfect for attaching photos, calendars, reminders, and notes.

Free Space Planning

Let our designers help you create a work setting that makes work life easier and inspires employees to succeed. Visit the Space Planning page and complete the form and we'll lay out your space for free, provide you with drawings, and top it off with a discounted office furniture quote.

All designs are crafted to take full advantage of your space and reviewed by a Certified Professional Ergonomist (CPE). From concept to completion, we'll be there. Start improving the way your company works.

Light Gray OneWall Cubicle Acoustic Office Partitions and OneWall Mobile Acoustic Office Partition build


Videos




Warranty + Returns




Assembly



Specs

Warranty 15 year warranty on all UPLIFT Desk products
Warranty page
Overall wall size Wall with 40" panels: 40" W x 3" D x 70" H
Wall with 52" panels: 52" W x 3" D x 70"H
Wall with 64" panels: 64" W x 3" D x 70" H
Wall with 72" panels: 72" W x 3" D x 70" H
Wall weight with panels Wall with 40" panels: 68.6 lb
Wall with 52" panels: 74.6 lb
Wall with 64" panels: 80.0 lb
Wall with 72" panels: 83.6 lb
Single panel weight 40" x 22" panel: 3.2 lb
52" x 22" panel: 4.2 lb
64" x 22" panel: 5.1 lb
72" x 22" panel: 5.7 lb
NRC value (Noise Reduction Rating) >0.85 (acoustic panels absorb 85% of the sound that hits them)
Panel fire rating Euro Class B and ASTM E84-08
Frame weight (per wall section, without connecting hardware) 49.4 lb
OneWall frame material & finish Steel, powder coat, gray
Acoustic panel material 15mm thick, compressed PET fiber (20% thicker panels than other brands for more sound absorption)
Acoustic panel colors Light gray, dark gray, lagoon blue, green, and brown (you can mix colors by contacting our sales department)
Shipping dimensions & weight 40" x 22" panel: 41" W x 23" D x 2" H, 7 lb
52" x 22" panel: 53" W x 23" D x 2" H, 10 lb
64" x 22" panel: 65" W x 23" D x 2" H, 12 lb
72" x 22" panel: 73" W x 23" D x 2" H, 13 lb


FAQ

Frequently Asked Questions

  1. What is the overall height of this wall partition?

    The assembled walls stand 5'10".

  2. What is the width of the wall partitions?

    Depending on the panel size selected, the walls can be 40", 52", 64" or 72" wide.

  3. What is the difference between this wall partition and the OneWall Mobile Acoustic Office Partition?

    While the OneWall Mobile and OneWall Cubicle Acoustic Office Partitions use the same wall frame components and acoustic panels, the mobile wall is a single stand alone wall section that can be moved throughout an open office environment as needed. The cubicle partition is used to create a continuous, joined wall with multiple sections. Canopies cannot be added to the mobile wall option.

  4. How many units can I connect?

    Connect as many as you need. Brackets can be attached at the end of any wall, so available space is the only limitation. Connect partitions together to create wall and cubicle layouts. Any configuration can easily be reconfigured and expanded as office needs change.

  5. Does this partition really help reduce sound?

    Yes. OneWall Cubicle Acoustic Office Partition panels absorb 85% of the sound that hits them, helping to block out interruptions and increase productivity.

  6. Can I add a canopy to both sides of a wall section?

    No, only one canopy can be attached to each wall section.

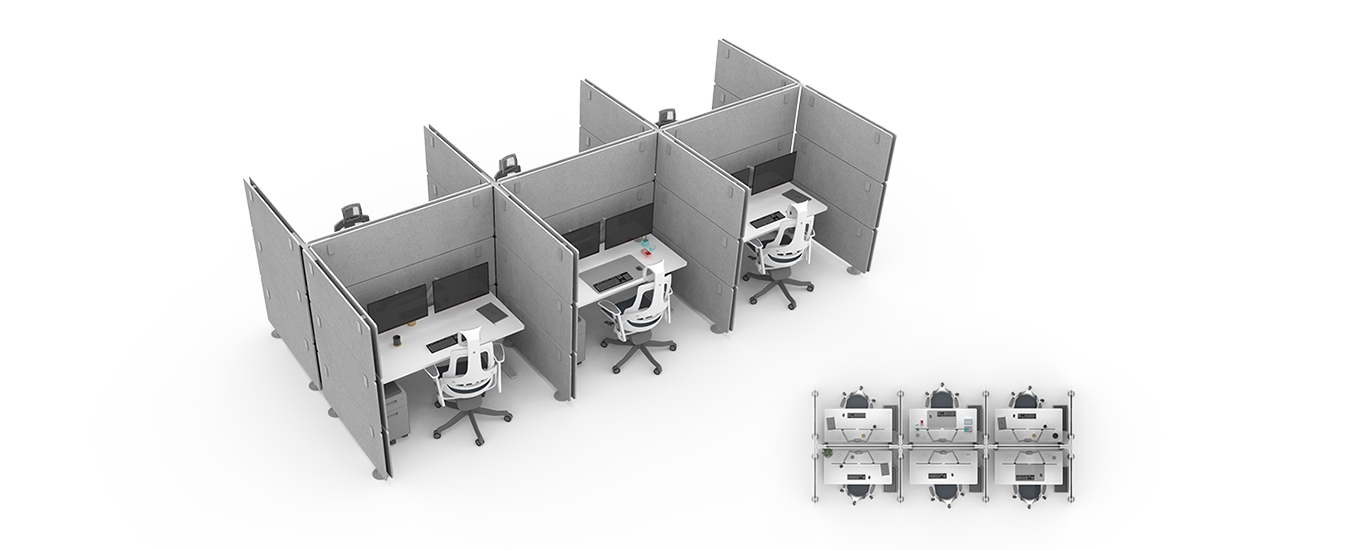

OneWall Cubicle - Configuration 1

Why Buy?

Create cubicle space for six desks (up to 72" in length) with this OneWall Cubicle 72" x 52" configuration. Provide privacy and reduce noise with our telescoping, modular, and customizable OneWall Cubicle Acoustic Office Partition Walls. This is one layout of thousands, contact us to get a custom layout created for your space, the drawing is free.

Image features: UPLIFT V2 Standing Desk 60" x 30"

Features & Specs

  • Cubicle size: (6) 72" x 52"
  • Walls included: (3) 72" walls, (8) 52" walls
  • Connectors included: (2) T connectors; (2) 4-way connectors
  • Cubicle wall acoustic panel colors: dark gray, light gray, lagoon blue, brown, and green
Light Gray OneWall Cubicle Acoustic Office Partitions with 6 UPLIFT V2 Standing Desk 60" x 30"

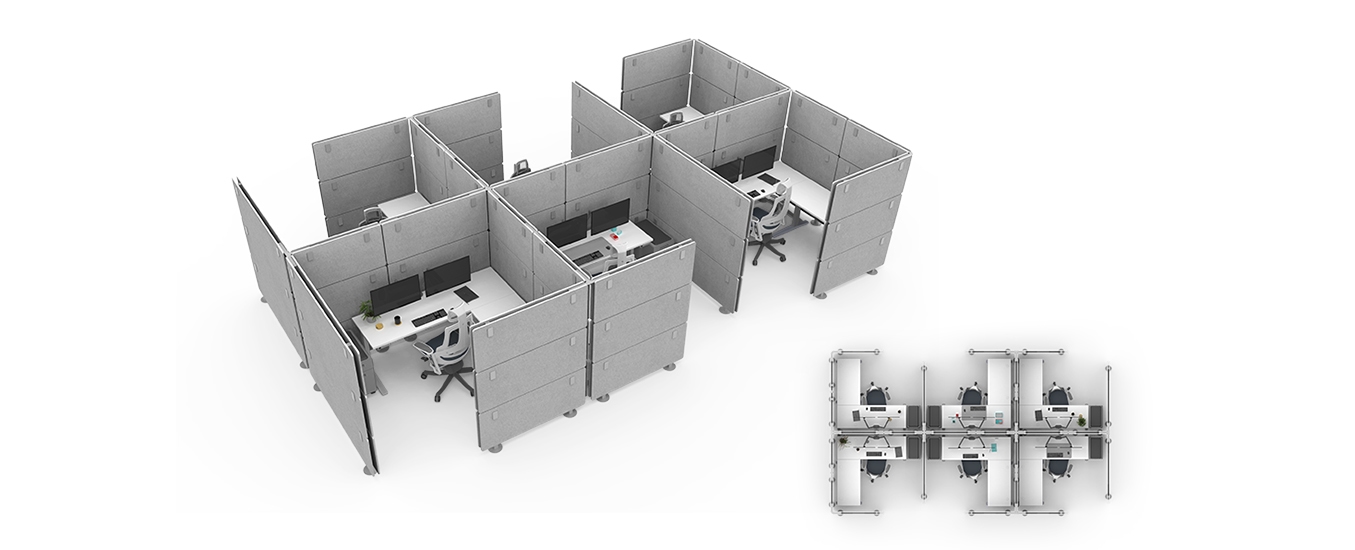

OneWall Cubicle - Configuration 2

Why Buy?

Create cubicle space for six desks (up to 72" in length) with this OneWall Cubicle 72" x 72" configuration. Provide privacy and reduce noise with our telescoping, modular, and customizable OneWall Cubicle Acoustic Office Partition Walls. This is one layout of thousands, contact us to get a custom layout created for your space, the drawing is free.

Image features: UPLIFT V2 Standing Desk 72" x 24"

Features & Specs

  • Cubicle size: (6) 72" x 72"
  • Walls included: (11) 72" walls
  • Connectors included: (2) T connectors; (2) 4-way connectors
  • Cubicle wall acoustic panel colors: dark gray, light gray, lagoon blue, brown, and green
Light Gray OneWall Cubicle Acoustic Office Partitions with 6 UPLIFT V2 Standing Desk 72" x 24"

OneWall Cubicle - Configuration 3

Why Buy?

Create cubicle space for four desks with this OneWall Cubicle 104" x 72" configuration. Provide privacy and reduce noise with our telescoping, modular, and customizable OneWall Cubicle Acoustic Office Partition Walls. This is one layout of thousands, contact us to get a custom layout created for your space, the drawing is free.

Image features: UPLIFT V2 Curved Corner (Right Return) Standing Desk

Features & Specs

  • Cubicle size: (4) 104" x 72"
  • Walls included: (2) 72" walls, (4) 64" walls, (4) 52" walls, (4) 40" walls
  • Connectors included: (2) T connectors; (1) 4-way connectors, (2) S connectors
  • Cubicle wall acoustic panel colors: dark gray, light gray, lagoon blue, brown, and green
Light Gray OneWall Cubicle Acoustic Office Partitions with 4 UPLIFT V2 Curved Corner (Right Return) Standing Desks

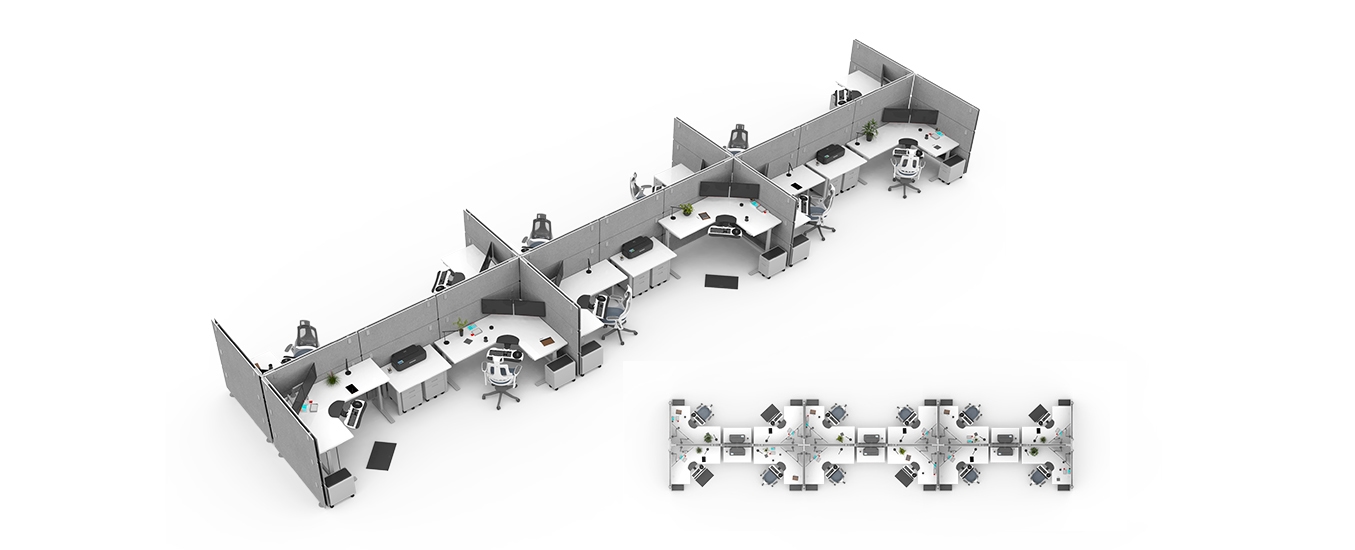

OneWall Cubicle - Configuration 4

Why Buy?

Create cubicle space large enough for two L-shaped desks, side tables, and storage cabinets with this OneWall Cubicle 208" x 72" configuration. Provide privacy and reduce noise with our telescoping, modular, and customizable OneWall Cubicle Acoustic Office Partition Walls. This is one layout of millions, contact us to get a custom layout created for your space, the drawing is free.

Image features: UPLIFT V2 L-Shape Standing Desk 60" x 78" x 30" and UPLIFT Seated Height Side Table

Features & Specs

  • Cubicle size: (6) 208" x 72"
  • Walls included: (3) 64" walls, (14) 72" walls
  • Connectors included: (6) S connectors (2) T connectors; (2) 4-way connectors
  • Cubicle wall acoustic panel colors: dark gray, light gray, lagoon blue, brown, and green
Light Gray OneWall Cubicle Acoustic Office Partitions with 12 UPLIFT V2 L-Shape Standing Desk 60" x 78" x 30" and 6 UPLIFT Seated Height Side Table

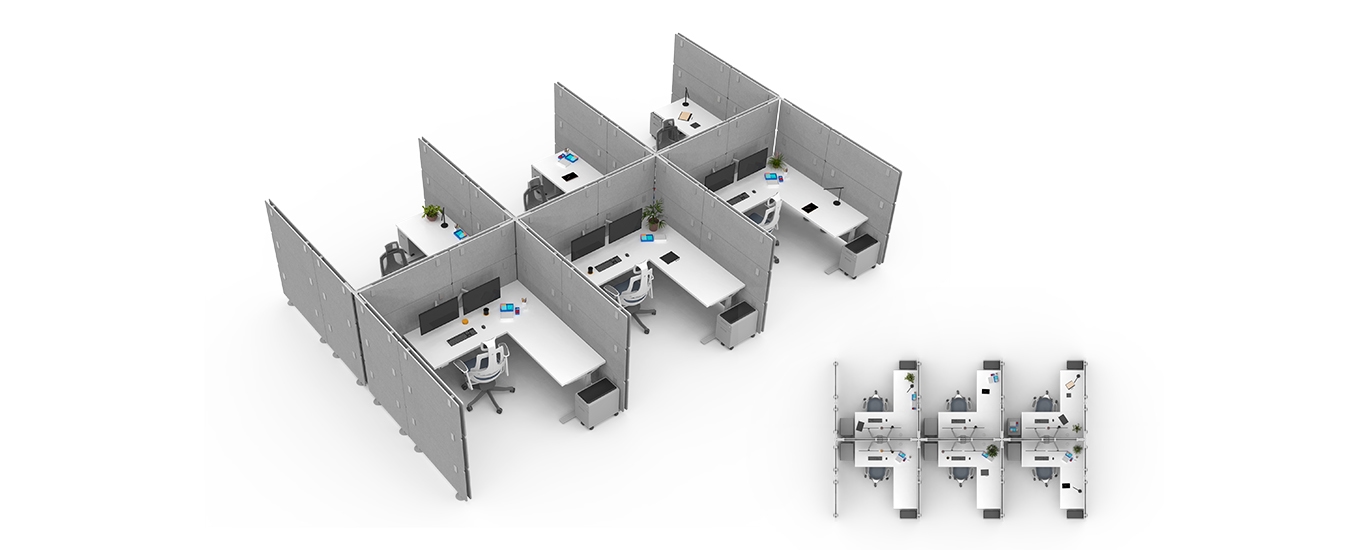

OneWall Cubicle - Configuration 5

Why Buy?

Create cubicle space for six L-shaped desks, or for larger workspace areas, with this OneWall Cubicle 92" x 92" configuration. Provide privacy and reduce noise with our telescoping, modular, and customizable OneWall Cubicle Acoustic Office Partition Walls. This is one layout of millions, contact us to get a custom layout created for your space, the drawing is free.

Image features: UPLIFT V2 L-Shape Standing Desk 60" x 78" x 30"

Features & Specs

  • Cubicle size: (6) 92" x 92"
  • Walls included: (11) 40" walls, (11) 52" walls
  • Connectors included: (11) S connectors (2) T connectors; (2) 4-way connectors
  • Cubicle wall acoustic panel colors: dark gray, light gray, lagoon blue, brown, and green
Light Gray OneWall Cubicle Acoustic Office Partitions with 6 UPLIFT V2 L-Shape Standing Desk 60" x 78" x 30"

OneWall Cubicle - Configuration 6

Why Buy?

Create cubicle space for six desks (up to 72" in length) and room for a side table with this OneWall Cubicle 92" x 80" configuration. Provide privacy and reduce noise with our telescoping, modular, and customizable OneWall Cubicle Acoustic Office Partition Walls. This is one layout of thousands, contact us to get a custom layout created for your space, the drawing is free.

Image features: UPLIFT V2 Standing Desk 72" x 24" and UPLIFT Seated Height Side Table 48" x 24"

Features & Specs

  • Cubicle size: (6) 92" x 80"
  • Walls included: (4) 72" walls, (9) 52" walls, (11) 40" walls
  • Connectors included: (4) T connectors; (2) 4-way connectors, (2) L connectors, (7) S connectors
  • Cubicle wall acoustic panel colors: dark gray, light gray, lagoon blue, brown, and green
 Light Gray OneWall Cubicle Acoustic Office Partitions with 6 UPLIFT V2 Standing Desk 72" x 24" and 6  UPLIFT Seated Height Side Table 48" x 24"

OneWall Cubicle - Configuration 1 with Canopies

Why Buy?

Create cubicle space for six desks (up to 72" in length) with this OneWall Cubicle 72" x 52" configuration. Provide privacy and reduce noise with our telescoping, modular, and customizable OneWall Cubicle Acoustic Office Partition Walls. This is one layout of thousands, contact us to get a custom layout created for your space, the drawing is free.

Image features: UPLIFT V2 Standing Desk 60" x 30"

Features & Specs

  • Cubicle size: (6) 72" x 52"
  • Walls included: (3) 72" walls, (8) 52" walls, (6) 52" Canopies
  • Connectors included: (2) T connectors; (2) 4-way connectors, (12) Canopy Brackets
  • Cubicle wall acoustic panel colors: dark gray, light gray, lagoon blue, brown, and green

OneWall Cubicle - Configuration 2 with Canopies

Why Buy?

Create cubicle space for six desks (up to 72" in length) with this OneWall Cubicle 72" x 72" configuration. Provide privacy and reduce noise with our telescoping, modular, and customizable OneWall Cubicle Acoustic Office Partition Walls. This is one layout of thousands, contact us to get a custom layout created for your space, the drawing is free.

Image features: UPLIFT V2 Standing Desk 72" x 24"

Features & Specs

  • Cubicle size: (6) 72" x 72"
  • Walls included: (11) 72" walls, (6) 72" Canopies
  • Connectors included: (2) T connectors; (2) 4-way connectors, (12) Canopy Brackets
  • Cubicle wall acoustic panel colors: dark gray, light gray, lagoon blue, brown, and green

OneWall Cubicle - Configuration 3 with Canopies

Why Buy?

Create cubicle space for four desks with this OneWall Cubicle 104" x 72" configuration. Provide privacy and reduce noise with our telescoping, modular, and customizable OneWall Cubicle Acoustic Office Partition Walls. This is one layout of thousands, contact us to get a custom layout created for your space, the drawing is free.

Image features: UPLIFT V2 Curved Corner (Right Return) Standing Desk

Features & Specs

  • Cubicle size: (4) 104" x 72"
  • Walls included: (2) 72" walls, (4) 64" walls, (4) 52" walls, (4) 40" walls, (4) 72" Canopies
  • Connectors included: (2) T connectors; (1) 4-way connectors, (2) S connectors, (8) Canopy Brackets
  • Cubicle wall acoustic panel colors: dark gray, light gray, lagoon blue, brown, and green

OneWall Cubicle - Configuration 4 with Canopies

Why Buy?

Create cubicle space large enough for two L-shaped desks, side tables, and storage cabinets with this OneWall Cubicle 208" x 72" configuration. Provide privacy and reduce noise with our telescoping, modular, and customizable OneWall Cubicle Acoustic Office Partition Walls. This is one layout of millions, contact us to get a custom layout created for your space, the drawing is free.

Image features: UPLIFT V2 L-Shape Standing Desk 60" x 78" x 30" and UPLIFT Seated Height Side Table

Features & Specs

  • Cubicle size: (6) 208" x 72"
  • Walls included: (3) 64" walls, (14) 72" walls, (6) 72" Canopies
  • Connectors included: (6) S connectors (2) T connectors; (2) 4-way connectors, (12) Canopy Brackets
  • Cubicle wall acoustic panel colors: dark gray, light gray, lagoon blue, brown, and green

OneWall Cubicle - Configuration 5 with Canopies

Why Buy?

Create cubicle space for six L-shaped desks, or for larger workspace areas, with this OneWall Cubicle 92" x 92" configuration. Provide privacy and reduce noise with our telescoping, modular, and customizable OneWall Cubicle Acoustic Office Partition Walls. This is one layout of millions, contact us to get a custom layout created for your space, the drawing is free.

Image features: UPLIFT V2 L-Shape Standing Desk 60" x 78" x 30"

Features & Specs

  • Cubicle size: (6) 92" x 92"
  • Walls included: (11) 40" walls, (11) 52" walls, (8) 40" Canopies
  • Connectors included: (11) S connectors (2) T connectors; (2) 4-way connectors, (32) Canopy Brackets
  • Cubicle wall acoustic panel colors: dark gray, light gray, lagoon blue, brown, and green

OneWall Cubicle - Configuration 6 with Canopies

Why Buy?

Create cubicle space for six desks (up to 72" in length) and room for a side table with this OneWall Cubicle 92" x 80" configuration. Provide privacy and reduce noise with our telescoping, modular, and customizable OneWall Cubicle Acoustic Office Partition Walls. This is one layout of thousands, contact us to get a custom layout created for your space, the drawing is free.

Image features: UPLIFT V2 Standing Desk 72" x 24" and UPLIFT Seated Height Side Table 48" x 24"

Features & Specs

  • Cubicle size: (6) 92" x 80"
  • Walls included: (4) 72" walls, (9) 52" walls, (11) 40" walls, (6) 52" Canopies
  • Connectors included: (4) T connectors; (2) 4-way connectors, (2) L connectors, (7) S connectors, (12) Canopy Brackets
  • Cubicle wall acoustic panel colors: dark gray, light gray, lagoon blue, brown, and green



Why Buy?

Configure your space into layouts that compliment the flow of your room and employees. Provide privacy and reduce noise with our telescoping, modular, and customizable OneWall Cubicle Acoustic Office Partition Walls. This is one layout of millions, contact us to get a custom layout created for your space, the drawing is free.

Features & Specs

  • Dampen sound in open areas, while adding privacy to create a sense of ownership in functional workspaces. 5'10" tall
  • Accommodates our 40", 52", 64" and 72" acoustic panel widths, while connecting brackets in straight, L, T, or 4-way shapes allow you to connect two, three, or more walls together
  • Absorbs 86% of all sound that hits the panel. Available in five color options
Light Gray OneWall Cubicle Acoustic Office Partitions with 6 UPLIFT V2 Standing Desk 72" x 24"

UPLIFT Desk Warranty Policy

We stand firmly behind the quality of our products. All UPLIFT Desk products come with a 15 Year Warranty, visit the Warranty page for the full policy.

Return Policy

Free Returns with Free Return Shipping within 30 days, visit the Returns page for the full policy.

Volume orders

If ordering more than one OneWall Cubicle, we recommend an initial order of one to ensure satisfaction before ordering the rest. We do not accept returns of orders that include more than one OneWall Cubicle. Visit the Free Space Planning page for designer assistance.
