Enfield Dual Monitor Arm by UPLIFT Desk

SKU: MON042
$169
Achieve a comfortable and ergonomic viewing height, distance, and angle for your monitors
$169

Ships 03/02/2022

Ships 03/02/2022



Overview

Enfield Dual Monitor Arm Features

  • Available in both a Single and Dual arm configuration, the Enfield has an elegant design with a modern aesthetic
  • Quickly position your monitor at an ergonomically correct distance from your eyes (fingertip reach distance) and height (top of screen should be near eye level)
  • Hover your monitor above the desktop, reclaiming useful desktop surface underneath the monitor and within your primary reach zone
  • Capable of pivoting a complete 360 degrees, or engage the 180 degree stopping feature to prevent the arm from rotating past the back edge of the desk
  • Keep your workspace tidy with integrated wire management
  • Convenient tool holder provides a home for included allen wrenches
  • Vertical adjustment range of 9.8" delivered by an internal spring for a fluid, counterbalanced motion
  • Two mounting methods and hardware included:
    • Clamp-On (works with 0.4" - 3.3" desktop thickness)
    • Bolt-Through (works with 0.4" - 3.1" desktop thickness)
  • Included quick release VESA plate accommodates standard 75 mm and 100 mm VESA mounting patterns
  • Compatible with monitors up to 32" each, measured diagonally
  • Supports monitors weighing between 4.4 lb to 19.8 lb each, visual indicator facilitates monitor weight adjustment during installation
  • 15 year warranty - all UPLIFT Desk products include a 15 year warranty

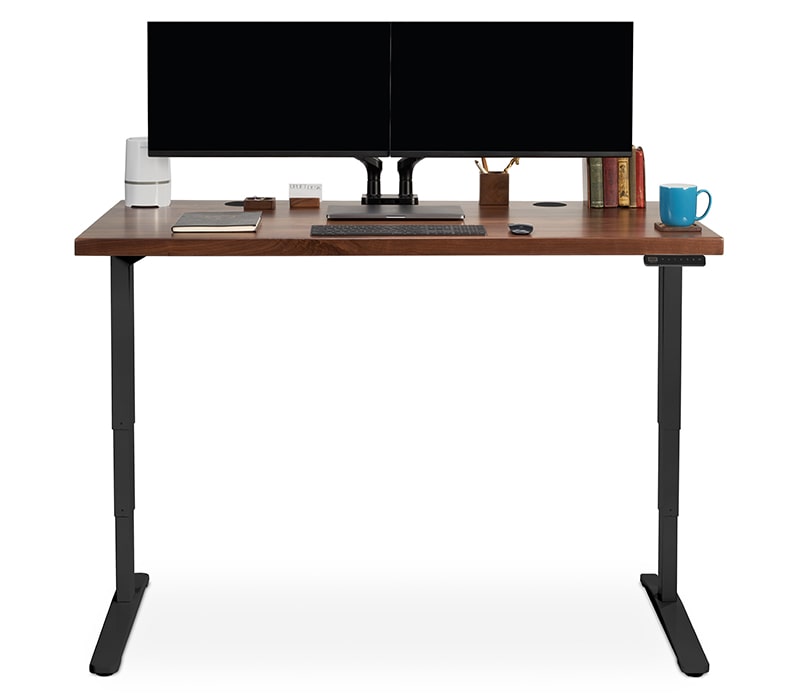

Dual Enfield Monitor Arm mounted to a 60“ x 30“ Walnut Solid Wood Standing Desk

60" x 30" Walnut Solid Wood Standing Desk



Details

An infographic that shows you how to ergonomically position your monitor with the help of a monitor arm

Perfect Positioning For Your Neck & Eyes

The Enfield Dual Monitor Arm enables two monitors to be ergonomically positioned for increased productivity and comfort. Adjust the distance, alignment, height, and tilt of monitors to reduce stress on the shoulders, torso, and neck—and to reduce eye strain from monitors that are too far away.

Height: Make sure that the top line of your monitors are at or just below eye level. Tilting your head backward to read your screen leads to discomfort.

Distance: Place your monitor screen roughly an arm's length (fingertip reach) away. Positioning the screen too far away will cause you to have trouble seeing the monitor and your eyes will pull your head forward causing you to extend your neck; this often leads to neck, back, and shoulder discomfort.

Vertical Angle: Adjust the vertical screen angle to minimize glare from windows and other light sources.

Horizontal Angle: For the monitors that are positioned not directly in front of you, adjust the horizontal angle so that they're more perpendicular to your perspective and less parallel to your desk.

Read more on the How to Position Your Screen Ergonomically (pdf).

Gain Space with Floating Monitors

The Enfield Dual Monitor Arm has 9.8" of vertical adjustment range provided by a smooth operating gas assisted spring arm that counterbalances monitors perfectly.

Valuable desktop real estate in the primary and secondary reach zone is reclaimed from the large bases typically used to support monitors. More usable desktop space contributes to enhanced comfort, organization, and productivity.

Primary Zone: Approximately 15" to 17" from the user, this zone is the most valuable and is used for items that are used most frequently, like a keyboard and mouse.

Secondary Zone: Approximately 27" inches away from the user. The user can reach items within this zone without the need to lean. It's a good space for a coffee cup, water bottle, phone, calculator, or reference notebooks.

Tertiary Zone: Approximately 42" to 45" from the user. It's a good space for sunglasses, books, or lamps.

An overhead image of an UPLIFT Desk with a Enfield Dual Monitor Arm that illustrates all three workspace zones
                    data-sizes=
A detail shot of the wire management channels on an Enfield Single Monitor Arm by UPLIFT Desk

Defined & Refined Design

Boasting an elegant and modern design, the Enfield brings value in both form and function.

The Enfield arms are able to pivot a complete 360 degrees at the base or you can engage the 180 degree stopping pin to prevent each arm from rotating past the back edge of the desk so it doesn't interfere with other desks, the wall, or extend into walkways.

Wire management channels are integrated into the upper and lower arms to keep your workspace free of stray cables.

Cable routing and allen wrench holders are located behind the base when the monitor arm is mounted using the clamp-on method.

Installation & Assembly

Choose from two included mounting options:

  • The Clamp-On method clamps the monitor arm to the edge of the desktop. The clamp-on method works with desktops ranging from 0.4" - 3.3" in thickness.
  • The Bolt-Through method attaches the monitor arm anywhere on the desktop or table using an existing hole (such as a grommet hole) or a new bolt hole. The bolt-through method works with desktops ranging from 0.4" - 3.1" in thickness.

The quick release VESA plate greatly assists with monitor installation. Instead of holding the monitor up to the monitor arm to fasten with screws, attach the VESA plate to your monitor first, and then slide the VESA plate onto the monitor arm. The VESA mount accommodates standard 75 mm and 100 mm mounting patterns and includes a mechanical lock for visual indication that your monitor is securely attached to the arm.

The Enfield Dual Monitor Arm supports monitors weighing between 4.4 lb to 19.8 lb each.

A convenient indicator displays spring tension to determine how to adjust for the weight of your monitor during installation.

An exploded view showing how the VESA plate easily attaches to the Enfield Single Monitor Arm by UPLIFT Desk


Videos




Warranty + Returns




Assembly



Specs

Height Range (low, high) 8.7" to 18.5" high, measured from the desk surface to the center of the monitor mount
Vertical Height Adjustment 9.8" total height difference from the low to the high
Monitor Weight Capacity 4.4 - 19.8 lb. This will accommodate the vast majority of monitors
VESA Compatibility Included standard 75 mm and 100 mm quick release VESA plate
Optional 200mm x 100mm VESA plate is available for larger monitors
Mount & Desk Thickness Compatibility The hardware for both mounting methods is included
  • Clamp-On (0.4" - 3.3" desktop thickness)
  • Bolt-Through (0.4" - 3.1" desktop thickness)
Bolt-through hole diameter 0.4" - 3.1"
Height Adjustment Mechanism Type Mechanical Spring
Forward Reach 21.1" from the center of the vertical post to the VESA plate with the monitor extended directly out towards the front of the desk
Side Extension 20" from the center of the base to the center of the VESA plate with the monitor extended directly out to the left or right.
Collapsible 4.6"
Swivel of Arm at Base 360 or 180 degrees. Engage the stopping pin to prevent the monitor arm from pivoting more than 180 degrees
Monitor Tilt Range 80 (+/-40) degrees
Monitor Pan Range 180 (+/-90) degrees
Monitor Rotation 360 degrees
Shipping Box Dimensions & Weight 17.5" L x 13.2" W x 5" H, 15.25 lb
Monitor Arm Weight
  • With Clamp: 9.5 lb
  • With Bolt-Through: 8.5 lb
Testing BIFMA x5.5 2014 for Desk Products


FAQ

Frequently Asked Questions

  1. Can I use this arm with a desk that isn't an UPLIFT Desk?

    Yes, the Enfield Dual Monitor Arm is compatible with both UPLIFT and non-UPLIFT desks, as long as the desktop meets the thickness specification:

    • Clamp-On (0.4" - 3.3" desktop thickness)
    • Bolt-Through (0.4" - 3.1" desktop thickness)
  2. Do you have the Enfield in a single monitor arm version?

    Yes, the Enfield Single Monitor Arm has the same features and a similar range of adjustability.

    The width limit for a dual monitor arm is not unlimited like the Enfield Single Monitor Arm. If you have monitors wider than 32" (measured diagonally), you can use two Enfield Single Monitor Arms. This enables you to place the bases far enough apart to accommodate wide screens and still maintain adjustability.

  3. What is a "quick-release VESA mount"?

    We understand the frustration of holding a monitor up with one hand while trying to fasten it onto the VESA plate with the other.

    The quick release VESA mount makes attaching a monitor simple. Fasten the included VESA plate to the back of your monitor, then slide the VESA plate into the mount at the end of the monitor arm and lock it into place.

    This feature also makes changing or moving monitors much easier. Press on the tab to disengage the lock and slide it off the monitor arm.

  4. Can the monitor arms be locked so that the monitor does not move if bumped?

    The base should not move if installed properly but there is no way to lock the swivel of the arm joints. The monitor tilt adjustment can be tightened so that the angle will not change if bumped.

  5. I need help setting up my monitor arm at the ergonomically correct position. Do you have any tips?

    Distance: Place your monitor screen roughly an arm's length (fingertip reach) away. Positioning the screen too far away will cause you to have trouble seeing the monitor and your eyes will pull your head forward causing you to extend your neck; this often leads to neck, back, and shoulder discomfort.

    Height: Make sure that the top line of your monitor is at or just below eye level. Tilting your head backward to read your screen leads to discomfort.

    Angle: Adjust screen angle to minimize glare from windows and light sources.

    Read more on the How to Position Your Screen Ergonomically Using a Monitor Arm (pdf).

UPLIFT Desk Warranty Policy

We stand firmly behind the quality of our products. All UPLIFT Desk products come with a 15 Year Warranty, visit the Warranty page for this particular product's warranty policy.

Return Policy

Free Returns with Free Return Shipping within 30 days, visit our Returns page for the full policy.
