Crestview Align Dual Monitor Arm by UPLIFT Desk

SKU: MON033
Was:
$129
Float your monitor above your desktop and free up space
Was:
$129

Ships same business day if ordered by 3pm Central



Overview

Crestview Align Dual Monitor Arm Features

  • Crestview is available in 4 configurations: Single, Dual, Align Dual (the model shown on this page), Align Triple
  • Place your monitors at an ergonomically correct distance from your eyes (fingertip reach) and height (top of screen, just below eye level)
  • Float monitors above desktop; Reclaim uninterrupted desktop surface for objects underneath the monitor within the primary reach zone
  • Arm pivots 360 degrees at the base with a 180 degree stopping feature that can be engaged on the fly to prevent the arm from rotating past the back edge of the desk
  • Removable, easy grip handle adjusts the position of both monitors with one motion and keeps monitors aligned relative to each other
  • Integrated wire management to keep your workspace looking tidy
  • Convenient tool holder provides a home for the included allen wrenches for future adjustments
  • 13" of vertical adjustment is provided by a gas spring delivering smooth motion
  • Add an optional Crestview Wiring Kit to gain 2 USB ports and 2 multimedia jacks which connect to your computer for convenient data transmission, charging, microphone and headset use
  • Two mounting methods and hardware included:
    • Clamp-On (works with 0.4" - 3.3" desktop thickness)
    • Bolt-Through (works with 0.4" - 1.8" desktop thickness)
  • Quick release VESA plates accommodates standard 75 mm and 100 mm VESA mounting patterns
  • Supports a wide range of monitors weighing from 2.2 lb to 17.6 lb and up to 32" in size when measured diagonally
  • 15 year warranty - all UPLIFT Desk products include a 15 year warranty

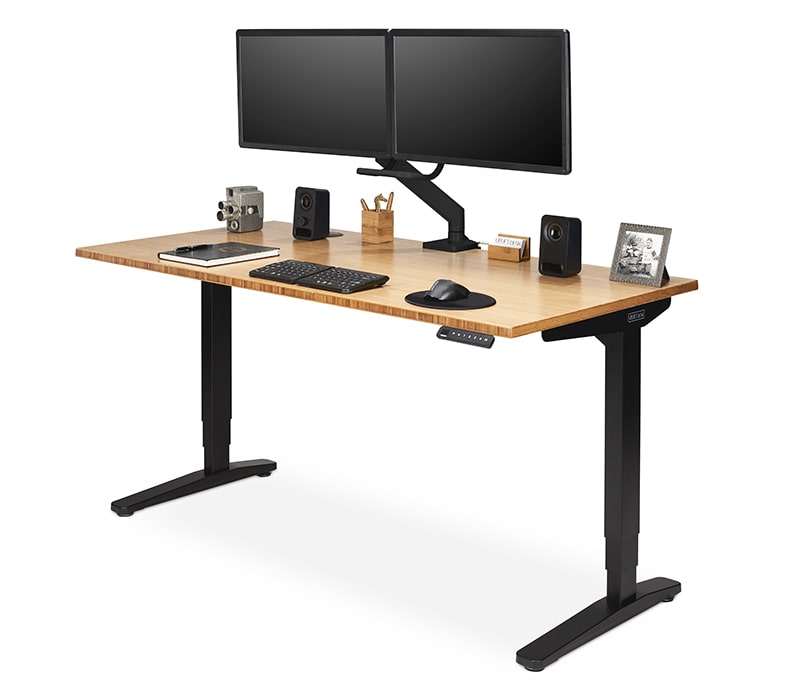

ergonomic monitor mounts for two monitors

Crestview Align Dual Monitor Arm mounted on a 60x30" Bamboo V2 Standing Desk



Details

An infographic that shows you how to ergonomically position your monitor with the help of a monitor arm

Save Your Neck & Eyes

The Crestview Align Dual Monitor Arm enables monitors to be ergonomically positioned for increased comfort and productivity while working. Adjust the height, tilt, distance, and alignment of screens to reduce stress on the neck, shoulders, and torso—and to keep eyes from straining to see a monitor that is too far away.

Distance: Place your monitor screen roughly an arm's length (fingertip reach) away. Positioning the screen too far away will cause you to have trouble seeing the monitor and your eyes will pull your head forward causing you to extend your neck; this often leads to neck, back, and shoulder discomfort.

Height: Make sure that the top line of your monitor is at or just below eye level. Tilting your head backward to read your screen leads to discomfort.

Vertical Angle: Adjust the vertical screen angle to minimize glare from windows and other light sources.

Horizontal Angle: For the monitors that are positioned not directly in front of you, adjust the horizontal angle so that they're more perpendicular to your perspective and less parallel to your desk.

Read more on the How to Position Your Screen Ergonomically Using a Monitor Arm (pdf).

Float Your Monitors to Gain Space

The Crestview Align Dual Monitor Arm has 13" of vertical adjustment range provided by a smooth operating gas assisted spring arm that counterbalances monitors perfectly. Valuable desktop real estate is reclaimed by floating the two monitors above the desktop. More usable desktop space contributes to enhanced comfort and productivity.

Primary Zone: Approximately 15" to 17" from the user, this zone is the most valuable and is used for items that are used most frequently, like a keyboard and mouse.

Secondary Zone: Approximately 27" inches away from the user. The user can reach items within this zone without the need to lean. It's a good space for a coffee cup, water bottle, phone, calculator, or reference notebooks.

Tertiary Zone: Approximately 42" to 45" from the user. It's a good space for sunglasses, books, or lamps.

Recoup desktop space with monitor arms by floating your monitors above the desktop
A close-up of monitor cables routed through the integrated cable management channels of a Crestview Align Dual Monitor Arm

Integrated Cable Channels and Allen Wrench Holder

Improved Design Features

180 or 360 Degrees of Pivot: The Crestview Align Dual Monitor Arm is capable of switching between 360 and 180 degrees of pivot depending on your needs. Effortlessly engage the 180 degree stopping mechanism to prevent the monitor arm from rotating past the back edge of the desk. This feature ensures the prevention of collisions with walls, privacy panels, or perhaps the monitors of a coworker seated opposite.

Cable Management: Route cables and cords efficiently from the monitor to the computer for a clean and organized aesthetic.

Allen Wrench Holder: Holds the included allen wrenches for adjustments or for future monitor arm relocation in a convenient location behind the monitor arm base.

Expanded Capabilities

The optional Crestview Monitor Arm Wiring Kit adds two multimedia ports and two 3.0 USB ports. This kit adds convenient access to microphone and headset jacks and USB connectivity. The kit's cable length is 6' and most users find this to be a sufficient length for the wiring from their computer to the monitor arm base. If more cable length is needed, cable extensions can be utilized. The Wiring Kit only comes in black, regardless of the color of monitor arm selected.

A close-up of two USB 3.0 ports and two multimedia ports on the base of a Crestview Align Dual Monitor Arm
Clamp mount on the Zilker Dual Monitor Arm

Assembly & Installation

Choose from two included mounting options:

  • The Clamp-On mount attaches the monitor arm along the edge of the desktop. The clamp mount works with desktops that are 0.4" to 3.3" thick.
  • The Bolt-Through mount positions the monitor arm anywhere on the desktop using an existing hole, like a grommet, or an entirely new hole. The bolt-through mount works on desktops between 0.4" to 1.8" thick.

Each monitor mount of the Crestview Align Dual Monitor Arm supports monitors weighing from 2.2 lb to 17.6 lb, meaning just about any monitor is compatible.

Quick release VESA plates assist immensely with monitor installation. This takes out the difficult challenge of needing to hold a monitor up to the monitor arm to fasten with screws. Instead: attach the VESA plates to the monitors, then slide the VESA plates onto each monitor mount.



Videos




Warranty + Returns




Assembly



Specs

Maximum Monitor Size 17" to 32" measured diagonally
Monitor Weight Capacity 2.2 - 17.6 lb This will accommodate the vast majority of monitors.
VESA Compatibility Included standard 75 mm and 100 mm quick release VESA plate
Mount & Desk Thickness Compatibility Clamp-On (0.4" - 3.3" desktop thickness)
Bolt-Through (0.4" - 1.8" desktop thickness)
The hardware for both mounting methods is included.
Bolt-through hole diameter 0.4" - 3.1"
Height Range (low, high) 10.4"-23.4" high measured from the desk surface to the center of the monitor mount.
Vertical Height Adjustment 13" total height difference from the low to the high
Height Adjustment Mechanism Type Gas Spring
Forward Reach 24.8" from the center of the post to the VESA plate with the monitor extended directly out towards the front of the desk
Side Extension 35.8" from the center of the post to the center of the VESA plate with the monitor extended directly out to the left or right
Collapsible Measured from the back of the monitor arm to the front, with the monitor arm completely minimized:
  • With Handle Installed: 9.25"
  • Without Handle Installed: 5.25"
Swivel of Arm at Base 360 or 180 degrees
Engage the stopping pin to prevent the monitor arm from pivoting more than 180 degrees.
Monitor Tilt Range 20 degrees (+/- 10 degrees)
Monitor Pan Range 20 degrees (+/- 10 degrees)
Monitor Rotation 360 degrees (portrait to landscape) but it is not recommended to turn the monitor upside down
Base footprint 4.7" x 4.3"
Horizontal support bar width 32.8"
Shipping Box Dimensions & Weight 35.2" L x 8.9" W x 5.9" H, 18.9 lb
Monitor Arm Weight With Clamp: 15.1 lb
With Bolt-Through: 12.9 lb
Testing BIFMA x5.5 2014 for Desk Products


FAQ

Frequently Asked Questions

  1. Can I use this arm with a desk that isn't an UPLIFT Desk?

    Yes, this accessory is compatible with UPLIFT and non-UPLIFT desks, as long as the desktop meets the thickness specification:

    • Clamp-On (0.4" - 3.3" desktop thickness)
    • Bolt-Through (0.4" - 1.8" desktop thickness)
  2. Do you have the Crestview in a single or triple monitor arm option?

    The Crestview is available in 3 configurations: Single, Dual, and Align Dual.

  3. Is the handle removable?

    Yes, the handle is removable. You can choose to not install it or install to get your monitors adjusted then remove it when the monitors are at the correct position. The handle location can also be adjusted to four different heights.

  4. Can the monitor arm be mounted upside down?

    The monitor arm is not designed to be mounted upside down and the monitors should not be rotated upside down either.

  5. What is a "quick-release VESA mount"?

    We understand the frustration of holding a monitor up with one hand while trying to fasten it onto the VESA plate with the other.

    The quick release VESA mount makes attaching a monitor simple. Fasten the included VESA plate to the back of your monitor, then slide the VESA plate into the mounts along the monitor arm bar.

  6. Can the monitor arms be locked, so that the monitor does not move if bumped?

    The base should not move if installed properly but there is no way to lock the swivel of the arm joints.

  7. I need help setting up my monitor arm at the ergonomically correct position. Do you have any tips?

    Distance: Place your monitor screen roughly an arm's length (fingertip reach) away. Positioning the screen too far away will cause you to have trouble seeing the monitor and your eyes will pull your head forward causing you to extend your neck; this often leads to neck, back, and shoulder discomfort.

    Height: Make sure that the top line of your monitor is at or just below eye level. Tilting your head backward to read your screen leads to discomfort.

    Angle: Adjust screen angle to minimize glare from window and light sources.

    Read more on the How to Position Your Screen Ergonomically Using a Monitor Arm (pdf).





Why Buy?

This dual arm keeps your monitors ergonomically positioned, saving desktop space by floating your monitors above your desktop, and keeps both monitors aligned with each other.

Features & Specs

  • Holds two monitors from 2.2 lb - 17.6 lb each and 32" measure diagonally
  • 13" of height adjustment
  • Fits desks 0.4" - 3.3" (clamp) and 0.3" - 1.9" (bolt-through) thick
  • Micro adjustments to fine tune and keep monitors aligned
  • Optional Crestview Monitor Arm Wiring Kit adds two 3.0 A USB ports and two multimedia ports. Cables are 6' long
