Overview
One-Touch Adjustment to 4 Saved Heights
Set up to four different heights and then tap a button to "automagically" adjust your desk to one of them. Move your chair and position a standing mat or board while the desk autonomously glides to your standing height with the help of its anti-collision system.

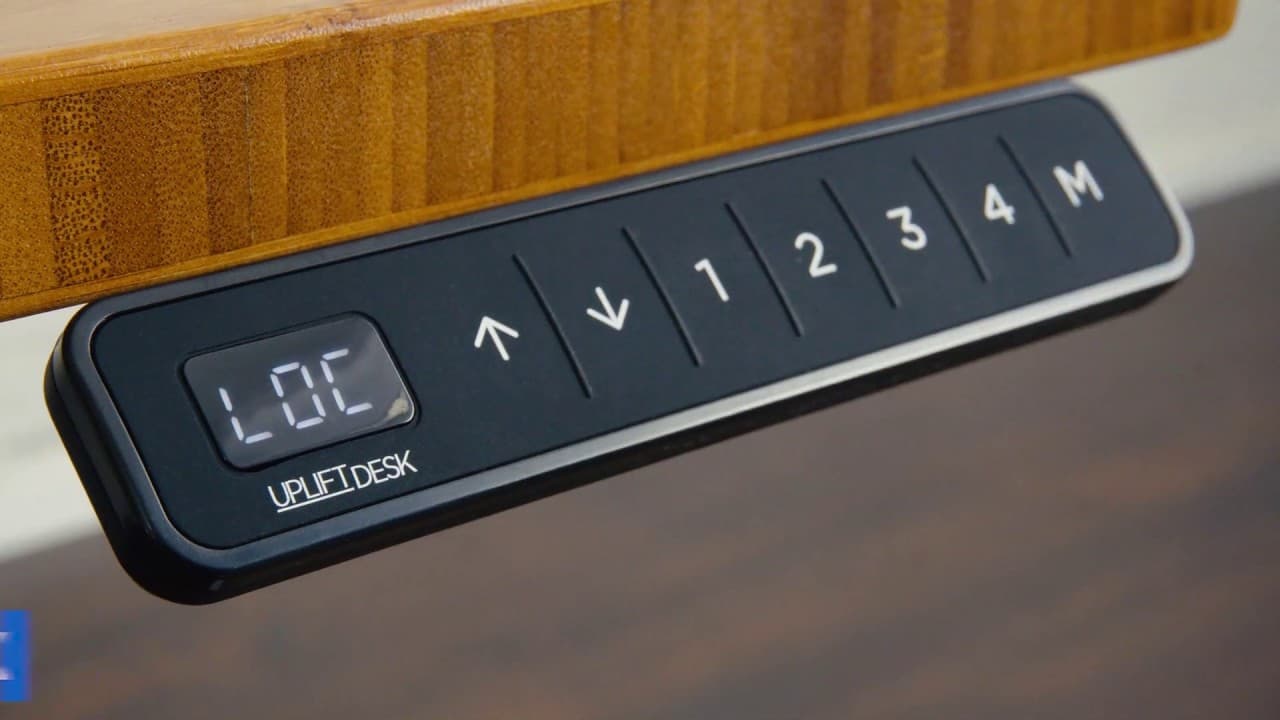

Keypad Lock
Prevents the desk from moving until deactivated. Useful if unsupervised small children are present.
Anti-Collision System
The 6-axis electronic gyroscope sensor in the control box measures desk motion and works well to stop desk motion whether moving up or down. If needed, advanced keypads can adjust the sensitivity of the system.
1-Touch or Constant-Touch
Advanced keypads are set to one touch mode for convenient desk repositioning. Set to constant touch or lock keypad if unsupervised children are present.
Min & Max Heights
Set stop limits to trigger before the desk impacts shelves above or cabinets below.
LED Display
Adjust to a specific height with the height display. Display auto off after 10 seconds of inactivity to avoid light distraction in dark rooms.
Height Calibration
Calibrate the displayed height on the keypad. Especially useful to account for the additional height added by casters
Tap into your desk's full potential with an advanced keypad.

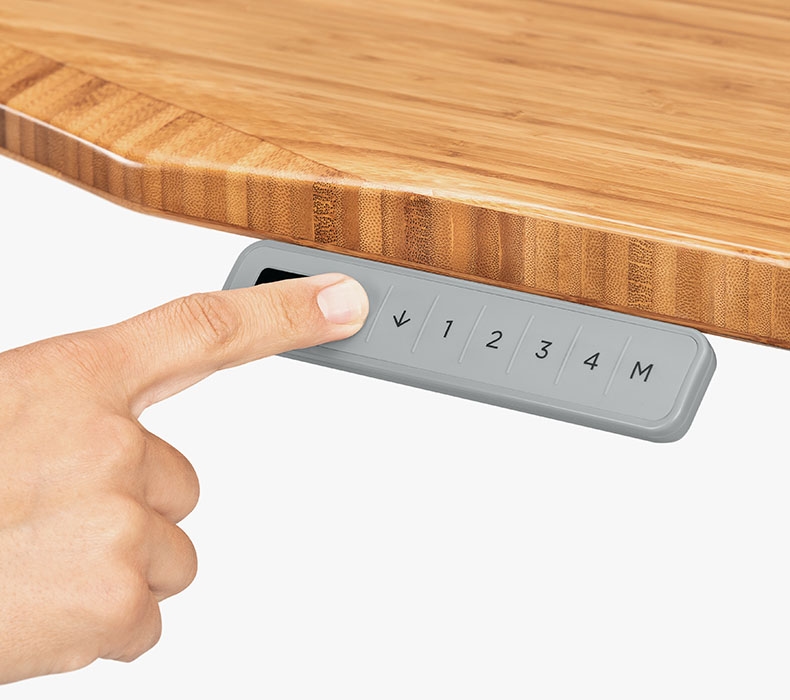

The molded rubber face design of the keypad gives the buttons a comfortable, soft-touch feel. Raised molded rubber dividers between the buttons offer tactile feedback for no-look operation. In the zone but feel the need to stand? Simply feel the preset height button, tap it, and the desk automatically rises to your standing height while you move the chair out of the way. All without losing focus.
Details

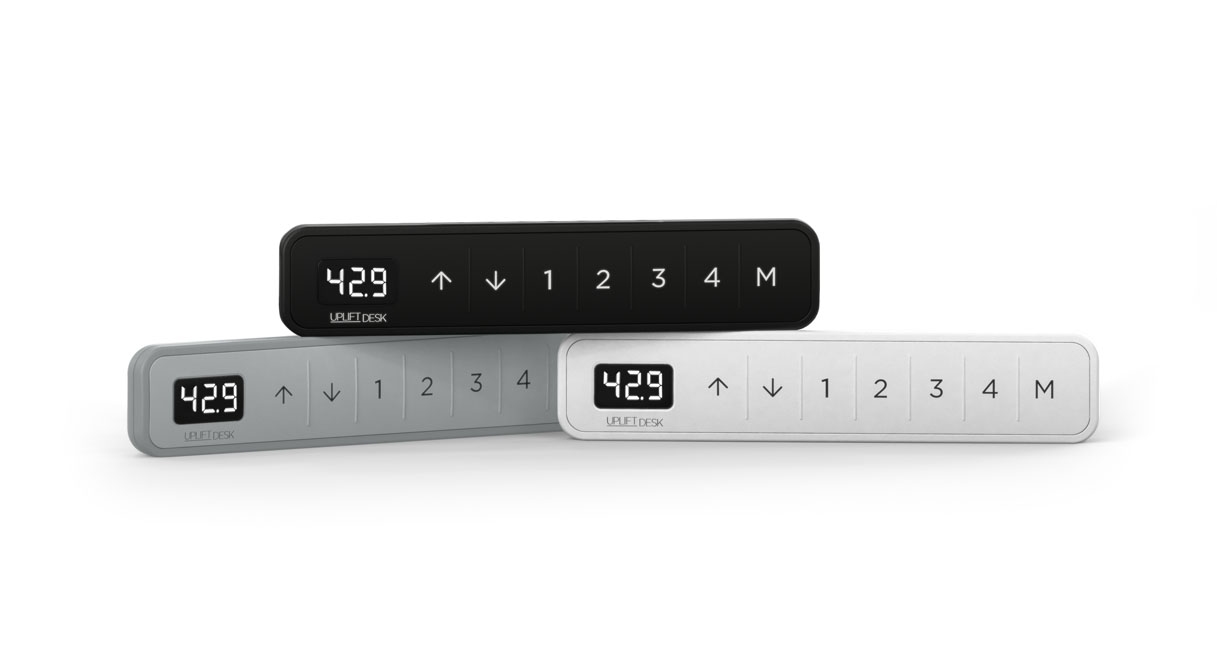

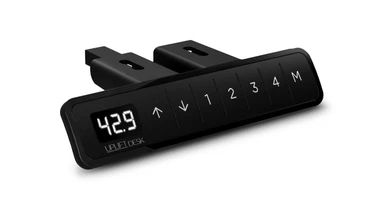

Keypads are available in Flush or Angled mount.
All Basic Keypads use constant-touch height adjustment: press and hold a button until the desk reaches the desired height.
Videos
Warranty + Returns
Assembly
Specs
| Warranty | 15 year warranty on all UPLIFT Desk products Warranty page |
| Product dimensions & weight |  Main body: 5.7" W x 1.2" D x 0.6" H Overall: 5.7" W x 2.3" D x 1.1" H Advanced Comfort Angled Keypad Specifications (pdf) |
| Control box compatibility | Compatible with all UPLIFT Desk control boxes. |
| Housing material | Molded plastic |
| Keypad material | Sealed, molded rubber |
| Cable length | 77" |
| Shipping dimensions & weight | 5.7" L x 2.3" W x 1.1" H, 0.28 lb when sold separately, otherwise is shipped inside consolidated boxes |
FAQ
Visit the Keypad Section of the Desk Assembly & Programming page.
This keypad will work on all electric height adjustable UPLIFT Desk models.
Yes.
The keypad is attached to the desktop with the included wood screws included. If you have an UPLIFT desktop, there are pre-drilled holes you can use.
The keypad ships with everything you need.
Yes, one of the best features of this keypad is the one-touch memory height adjustment. Once you have your presets programmed, simply press the number and watch as your desk moves into place.
Like all of our keypads with displays, the auto-dark feature turns the display off after a period of about 10 seconds. This is particularly beneficial when working in darker environments.
Product Page | Instructions (pdf) | Specifications (pdf)
Most desk issues can be solved quickly by following our desk reset and troubleshooting instructions. These steps can be completed in just a few minutes. If you still need assistance, please contact us.
We stand firmly behind the quality of our products. All UPLIFT Desk products come with a 15 Year Warranty, visit the Warranty page for the full policy.
Free Returns with Free Return Shipping within 30 days, visit the Returns page for the full policy.
|
|
|
|
|
|
|
| 15 year warranty | 15 year warranty | 15 year warranty | 15 year warranty | 15 year warranty | 15 year warranty |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Flush profile | Flush profile | Angled profile | Angled profile | Angled profile | |
|
|
|
|
|
|
|
|
|
|
|
|
|
