Overview
Carbonized Bamboo Curve Desktop
Create a happy workspace when you personalize your desk with a keyboard tray system from UPLIFT Desk. Be comfortable and potentially reduce pain while typing for a more comfortable lifestyle. Typing at the correct height, distance, and angle reduces strain on the body resulting in less pain. The Switch Ultra-Thin Keyboard Tray System by UPLIFT Desk has it all!

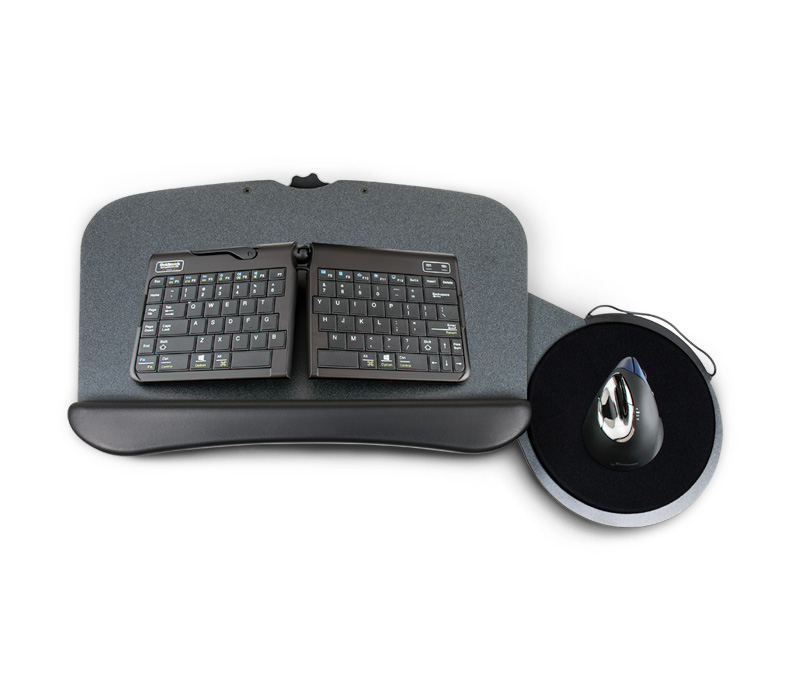

It can be challenging when you're a left-handed person living in a world designed for right-handed users. UPLIFT Desk has created a solution that works for everyone. The switch keyboard tray works for both left, right, and ambidextrous users. Slide the mouse tray towards the center of the keyboard tray to adjust for left and right-handed mousing. The keyboard platform is 19.75" W x 12.5" D plus contains an additional 9" diameter mouse tray. These measurements enable you to have the proper amount of room to work.
White Greenguard-Gold Laminate Desktop
Achieve your perfect typing posture by placing the keyboard tray closer to your lap. The goal is to type with straight wrists while having your elbows bent at a 90-degree angle. To help you determine the correct height for your desk, keyboard tray, and chair we've even included an ergonomics calculator for you here. These steps will ensure a comfortable fit while typing.

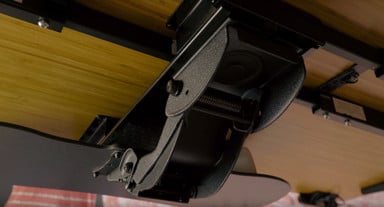

The Quick-Adjust Mechanism is one of two mechanism options for your keyboard tray system. This advanced feature has a simple lift and release option for adjusting the height of your tray. Enjoy up to 8" of height adjustment features.
The Economy Mechanism is the second option to use with the Switch Ultra-Thin Keyboard Tray. Use the knob on the side of the tray to create your correct typing position. Experience up to 6" of height adjustment features with spring assistance.
The 360-degree swivel movement allows you to move your keyboard tray away from you or store under your desk. If a co-worker would like to join you at your desk for an impromptu meeting, swivel the tray out of your way for more deskspace during your collaboration.
The Quick-Adjust mechanism has a platform tilt angle marked so you can see the degree at which your tray is tilted. This precise measurement ensures you not only find your correct ergonomic angle but also allows you to easily reposition when you see your tray has moved out of place.
Videos
Customer Photos
Warranty + Returns
Assembly
Specs
Switch Ultra-Thin Keyboard Tray | |
---|---|
Platform dimensions | 19.75" W x 12.5" D x 0.25" H |
Mouse pad dimensions | 9" diameter |
Platform material | Phenolic resin |
Wrist rest material | Self-skinning polyurethane foam (no latex) |
Mouse pad material | Polyurethane with Lycra cover |
Weight Limit | 10 lb |
Includes | Platform, ambidextrous mouse platform, cord catcher, removable wrist rest and mouse pad |
Shipping dimensions | 25" L x 13" W 3" H, 9.1 lb |
Economy Mechanism | |
Adjustment mechanism | Single knob sets both height & tilt of keyboard tray |
Swivel at mechanism | 360 degree |
Mechanism distance | 2.25" end of track to rear of keyboard tray |
Height adjustment | 6" height adjustment, spring assistance 1.75" above underside of desktop w/o track spacer 4.25" below underside of desktop w/o track spacer |
Tilt adjustment | 15 degrees negative to 15 degrees positive |
Track lengths | 21" L (recommended) 11" L (for limited space) |
Certifications | Meets BIFMA x 5.5-1998 Standards |
Shipping dimensions | 22" L x 9" W 4.25" H, 8.4 lb |
Quick-Adjust Mechanism | |
Height adjustment | 8" total (3" above track to 5" below) |
Tilt adjustment | 20 degrees negative to 10 degrees positive |
Track lengths | 21" L (standard) 11" L (for limited space) |
Swivel at mechanism | 360 degree |
Shipping dimensions | 25" L x 13" W 5" H, 8.6 lb |
FAQ
It comes down to preference. Some people really enjoy having a separate mousing platform and will, therefore, be happier with the Switch. Other people are quite content with the single, large surface provided by the Big Standard Keyboard Tray.
The Switch Ultra-Thin Keyboard Tray has a more compact footprint, thanks to the separate mouse platform. It also features a cable organizer to keep your mouse cord in line.
The crossbar of the UPLIFT frame is mounted to the underside of the desktop, and may get in the way of your keyboard tray when you try to push it all the way under the desktop. That is when the Track Spacer is needed. The Track Spacer goes over the crossbar and allows you to install the keyboard tray directly to it, instead of to your desk. This means that you will be able to fully store your keyboard tray under your desk without hitting the crossbar.
No, both the keyboard tray and mouse platform tilt in unison.
The Switch Ultra-Thin Keyboard Tray allows you to easily "switch" the mousing platform from left to right, depending on which hand you prefer to use for mousing.
There is one mousing platform that slides from side-to-side underneath the keyboard platform. Only one side of the mouse platform can be used at a time.
You may have forgotten to remove the shipping pin. Refer to step four of the installation guide for how to remove the shipping pin and you'll be enjoying your keyboard tray in no time.
The keyboard platform measures 19.75" W x 12.5" D x 0.25" H
Yes! We recommend the Quick-Adjust Mechanism due to its advanced adjustment features.
Yes, the mouse tray can be moved from left to right.
Not at this time.
Yes, this accessory is compatible with UPLIFT and non-UPLIFT desks.
No, the wrist rests are 100% polyurethane with no latex rubber.
This keyboard tray features a rotating mouse pad that can "switch" between left- and right-hand configurations.
*If you are installing this Track Spacer on an UPLIFT 4-leg desk with front and rear crossbars, you will need to first remove the plastic cubby from the Track Spacer bracket to avoid interference with the front crossbars.
This keyboard tray features a rotating mouse pad that can "switch" between left- and right-hand configurations.
*If you are installing this Track Spacer on an UPLIFT 4-leg desk with front and rear crossbars, you will need to first remove the plastic cubby from the Track Spacer bracket to avoid interference with the front crossbars.
We stand firmly behind the quality of our products. All UPLIFT Desk products come with a 15 Year Warranty, visit the Warranty page for the full policy.
Free Returns with Free Return Shipping within 30 days, visit the Returns page for the full policy.
![]() |
|
|
Tray material: MDF (black and white), bamboo | Tray material: Phenolic resin | Tray material: Phenolic resin |
Wrist rest material: Self-skinning polyurethane foam (no latex) | Wrist rest material: Self-skinning polyurethane foam (no latex) | Wrist rest material: Self-skinning polyurethane foam (no latex) |
Mouse pad material: Polyurethane with Lycra cover | Mouse pad material: Polyurethane with Lycra cover | Mouse pad material: Polyurethane with Lycra cover |
Platform dimensions: 27" W x 11" D | Platform dimensions: 27" W x 11" D | Platform dimensions: 19.75" W x 12.25" D |
Platform thickness: 0.37" | Platform thickness: 0.25" | Platform thickness: 0.25" |
Mousepad diameter: 8" | Mousepad diameter: 8" | Mousepad diameter: 8" |
Track length: 21" (standard) 11" (limited depths) | Track length: 21" (standard) 11" (limited depths) | Track length: 21" (standard) 11" (limited depths) |
Mechanism weight capacity: 10 lb | Mechanism weight capacity: 10 lb | Mechanism weight capacity: 10 lb |
Mechanism swivel: 360° | Mechanism swivel: 360° | Mechanism swivel: 360° |
Mechanism color: black | Mechanism color: black | Mechanism color: black |
Mechanism material: steel | Mechanism material: steel | Mechanism material: steel |
Quick-Adjust Mechanism Specs Total Height Range: 8" Height Above Desktop: 3" Height Below Desktop: 5" Tilt Adjustment: -20° / +10° | Quick-Adjust Mechanism Specs Total Height Range: 8" Height Above Desktop: 3" Height Below Desktop: 5" Tilt Adjustment: -20° / +10° | Quick-Adjust Mechanism Specs Total Height Range: 8" Height Above Desktop: 3" Height Below Desktop: 5" Tilt Adjustment: -20° / +10° |
Economy Mechanism Specs Total Height Range: 6" Height Above Desktop: 1.75" Height Below Desktop: 4.25" Tilt Adjustment: -15° / +15° | Economy Mechanism Specs Total Height Range: 6" Height Above Desktop: 1.75" Height Below Desktop: 4.25" Tilt Adjustment: -15° / +15° | Economy Mechanism Specs Total Height Range: 6" Height Above Desktop: 1.75" Height Below Desktop: 4.25" Tilt Adjustment: -15° / +15° |
Meets BIFMA x 5.5-1998 Standards | Meets BIFMA x 5.5-1998 Standards | Meets BIFMA x 5.5-1998 Standards |
|
|
|
![]() |
![]() |
---|---|
KBT009 | KBT010 |
|
|
Steel | Steel |
Track length: 21" (standard) 11" (for limited space) | Track length: 21" (standard) 11" (for limited space) |
Height range with 1" desktop Total: 8" Above Desktop: 3" Below Desktop: 5" | Height range with 1" desktop Total: 6" Above Desktop: 1.75" Below Desktop: 4.25" |
Weight capacity: 10 lb | Weight capacity: 10 lb |
Tilt: -20° to +10° | Tilt: -15° to +15° |
Swivel: 360° | Swivel: 360° |
|
|
|
|
